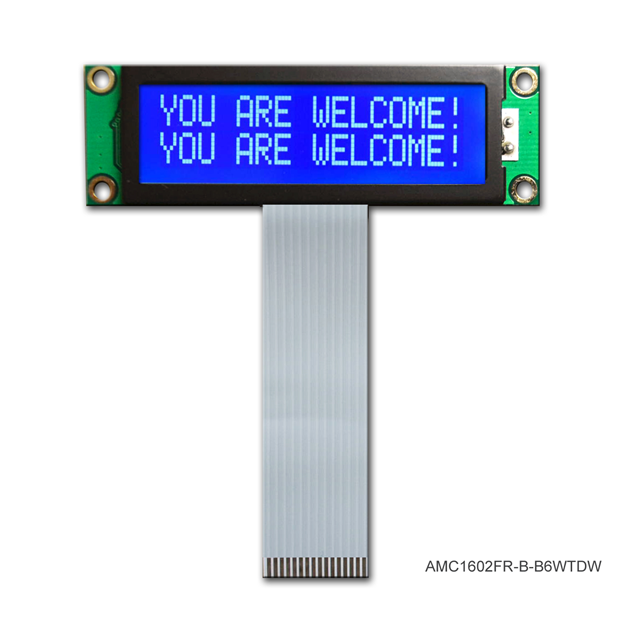

AMC1602FR-B-B6WTDW
16X2 CHARACTER STN BLUEManufacturer: ORIENT DISPLAY
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic LED - White Parallel 69.00mm x 27.00mm x 8.00mm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transmissive |
| Backlight | LED - White |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 51.00mm L x 14.80mm W |
| Character Size | 4.90mm H x 2.56mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.48mm W x 0.56mm H |
| Controller Type | S6A0069 |
| Outline L x W x H | 69.00mm x 27.00mm x 8.00mm |
| Text Color | White |
| Background Color | Blue |
| Number of Characters | 32.0 |
