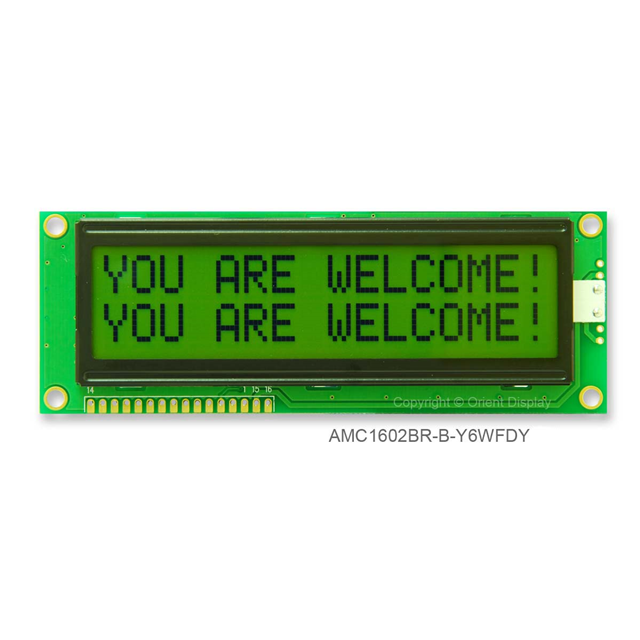

AMC1602BR-B-Y6WFDY
16X2 CHARACTER STN POS YGManufacturer: ORIENT DISPLAY
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green Parallel 122.00mm x 44.00mm x 14.50mm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | Parallel |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 5V |
| Viewing Area | 99.00mm L x 24.00mm W |
| Character Size | 4.80mm H x 9.66mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.92mm W x 1.10mm H |
| Controller Type | S6A0069 |
| Outline L x W x H | 122.00mm x 44.00mm x 14.50mm |
| Text Color | Black |
| Background Color | Yellow/Green |
| Number of Characters | 32.0 |
