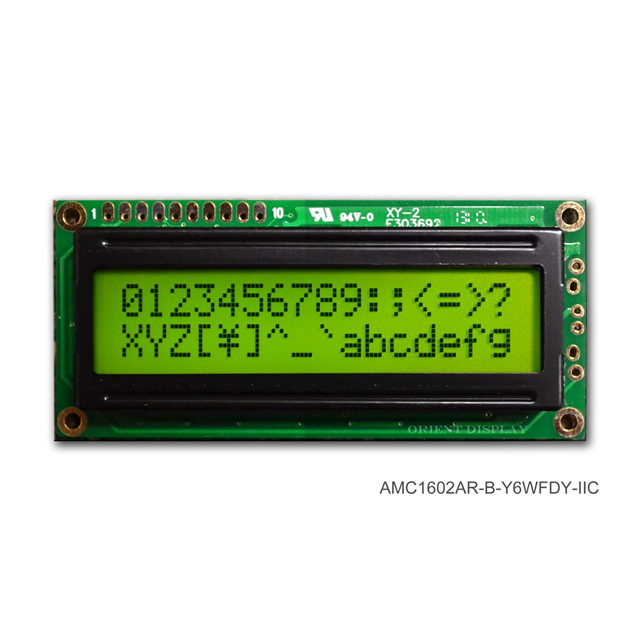

AMC1602AR-B-Y6WFDY-I2C
16X2 CHARACTER STN POS YG I2CManufacturer: ORIENT DISPLAY
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green I2C 80.00mm x 36.00mm x 14.00mm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | I2C |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 5V |
| Viewing Area | 64.50mm L x 15.50mm W |
| Character Size | 2.95mm H x 5.55mm W |
| Display Format | 16 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.55mm W x 0.65mm H |
| Controller Type | AC780S |
| Outline L x W x H | 80.00mm x 36.00mm x 14.00mm |
| Text Color | Black |
| Background Color | Yellow/Green |
| Number of Characters | 32.0 |
