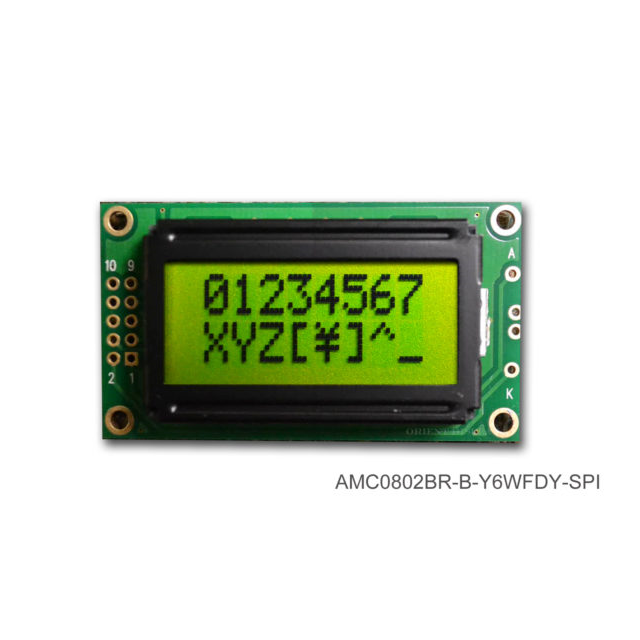

AMC0802BR-B-Y6WFDY-SPI
LCD COB CHAR 8X2 Y/G TRANSF SPIManufacturer: ORIENT DISPLAY
Categories: LCD, OLED Character and Numeric
Quality Control: Learn More
Character Display Module Transflective 5 x 8 Dots STN - Super-Twisted Nematic LED - Yellow/Green SPI 58.00mm x 32.00mm x 14.00mm
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: BoxDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Box |
| Display Type | STN - Super-Twisted Nematic |
| Display Mode | Transflective |
| Backlight | LED - Yellow/Green |
| Interface | SPI |
| Operating Temperature | -20°C ~ 70°C |
| Voltage - Supply | 4.5V ~ 5.5V |
| Viewing Area | 38.00mm L x 16.00mm W |
| Character Size | 5.56mm H x 2.96mm W |
| Display Format | 8 x 2 |
| Character Format | 5 x 8 Dots |
| Dot Size | 0.56mm W x 0.66mm H |
| Controller Type | AC780S |
| Outline L x W x H | 58.00mm x 32.00mm x 14.00mm |
| Text Color | Dark Blue |
| Background Color | Yellow/Green |
| Number of Characters | 16.0 |
Request a Quote
