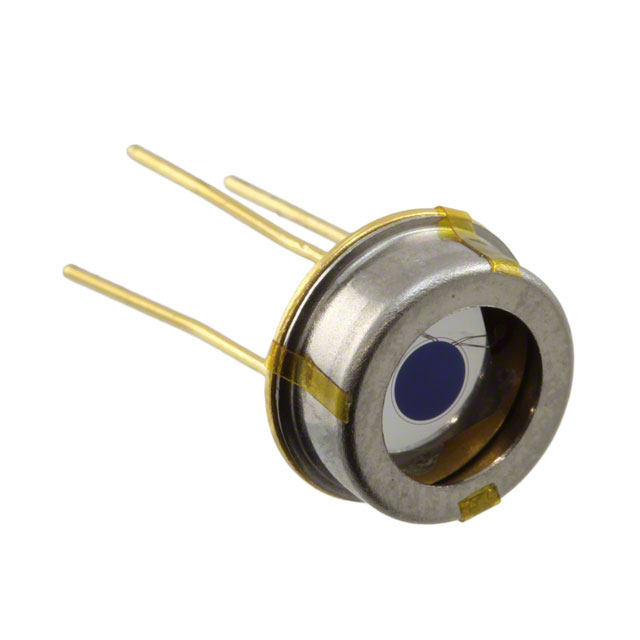

UVG5
SENSOR PHOTODIODE UV 5MM2Manufacturer: Opto Diode Corp
Categories: Photodiodes
Quality Control: Learn More
Opto Diode Corp UVG Series UVG5 is a high-performance photodiode with a 5mm² active area. This component offers a fast response time of 1µs and a wide spectral range from 250nm to 1100nm, with a notable responsivity of 0.115 A/W at 254nm. Designed for through-hole mounting, the UVG5 operates across a temperature range of -20°C to 80°C and features a viewing angle of 45°. Its typical dark current is 1nA. Applications for this device include UV monitoring, flame detection, and industrial process control. The component is supplied in tray packaging.
Additional Information
Series: UVGRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | - |
| Wavelength | - |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -20°C ~ 80°C |
| Response Time | 1µs |
| Viewing Angle | 45° |
| Spectral Range | 250nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.115 A/W @ 254nm |
| Active Area | 5mm² |
| Current - Dark (Typ) | 1nA |
