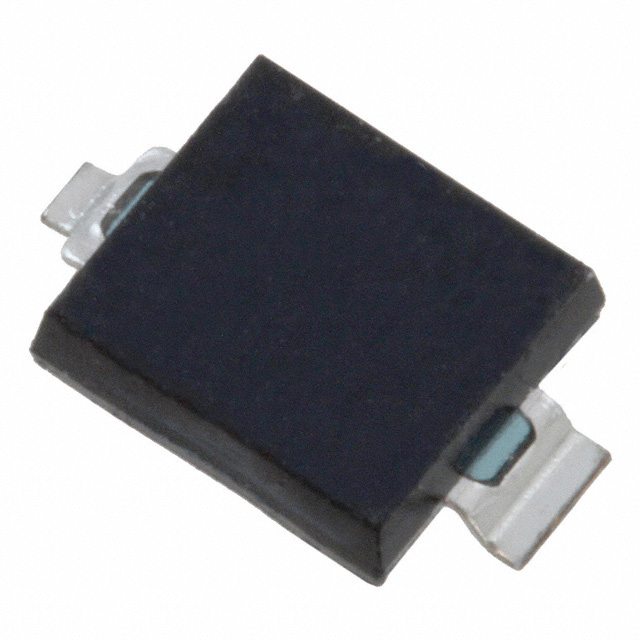

ODD-8SMD-DF
SENSOR PHOTODIODE 940NM LOCAPManufacturer: Opto Diode Corp
Categories: Photodiodes
Quality Control: Learn More
Opto Diode Corp ODD-8SMD-DF is a General Series photodiode featuring a 940nm peak wavelength. This surface mount component offers a 50ns response time and a dark current of 5nA typ. The active area measures 8mm², with a responsivity of 0.44 A/W at 940nm. Its spectral range spans from 730nm to 1100nm. Designed for demanding applications, it operates within a temperature range of -25°C to 85°C and supports a maximum reverse voltage of 170V. This component is commonly utilized in industrial automation, medical equipment, and optical sensing systems. It is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: GeneralRoHS Status: Request inventory verificationManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | - |
| Wavelength | 940nm |
| Mounting Type | Surface Mount |
| Diode Type | - |
| Operating Temperature | -25°C ~ 85°C |
| Response Time | 50ns |
| Viewing Angle | - |
| Spectral Range | 730nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.44 A/W @ 940nm |
| Active Area | 8mm² |
| Current - Dark (Typ) | 5nA |
| Voltage - DC Reverse (Vr) (Max) | 170 V |
