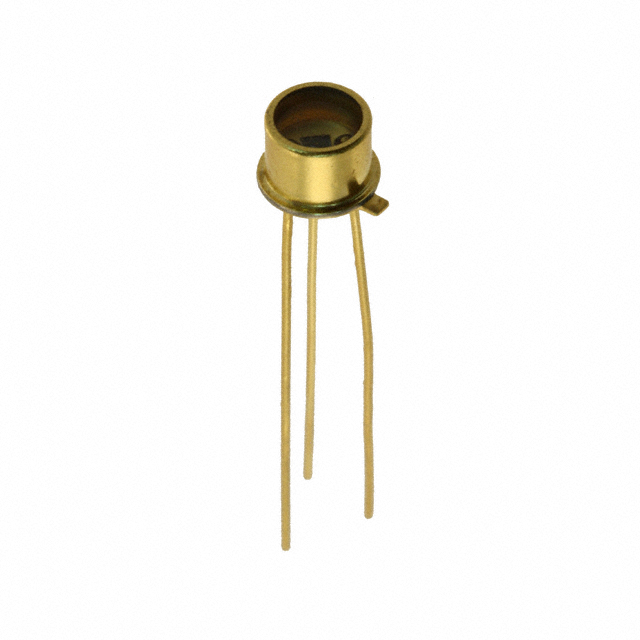

ODD-45W
SENSOR PHOTODIODE 880NM TO46Manufacturer: Opto Diode Corp
Categories: Photodiodes
Quality Control: Learn More
Opto Diode Corp ODD-45W is a silicon photodiode with a spectral range of 400nm to 1100nm, optimized for 880nm. Featuring a 1mm² active area, this component offers a responsivity of 0.6 A/W at 880nm and a typical dark current of 400pA. The ODD-45W exhibits a fast response time of 1µs and is rated for a maximum reverse voltage of 5V. Designed for through-hole mounting, it operates within an extended temperature range of -55°C to 100°C. This photodiode is suitable for applications in industrial automation, medical devices, and optical sensing systems. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | - |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Diode Type | - |
| Operating Temperature | -55°C ~ 100°C |
| Response Time | 1µs |
| Viewing Angle | - |
| Spectral Range | 400nm ~ 1100nm |
| Color - Enhanced | - |
| Responsivity @ nm | 0.6 A/W @ 880nm |
| Active Area | 1mm² |
| Current - Dark (Typ) | 400pA |
| Voltage - DC Reverse (Vr) (Max) | 5 V |
