OD-880W
EMITTER IR 880NM 100MA TO-46Manufacturer: Opto Diode Corp
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

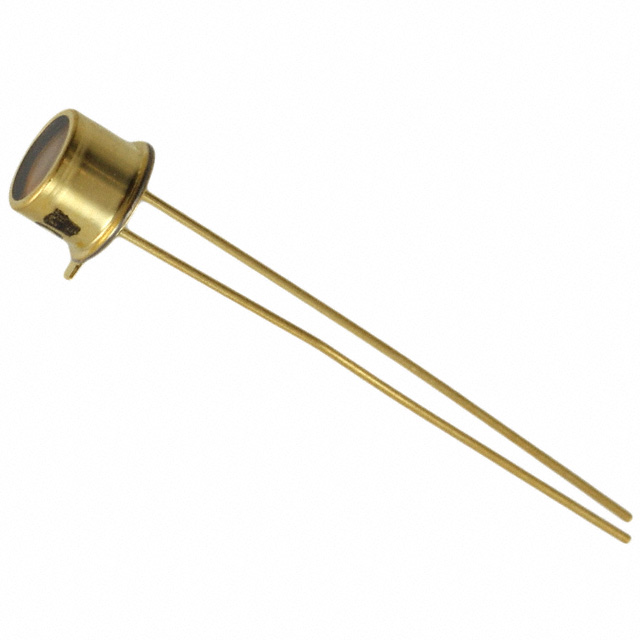

Opto Diode Corp OD-880W is an infrared (IR) emitter designed for demanding applications. This component features a 880nm wavelength, delivering a forward voltage of 1.55V (typical) at a maximum DC forward current of 100mA. Its radiant intensity is specified at 16mW/sr at 100mA, with a broad 80° viewing angle. The emitter is housed in a TO-46-2 metal can package, suitable for through-hole mounting. Operating across a wide temperature range of -55°C to 100°C (TA), the OD-880W is commonly utilized in industrial automation, security systems, and medical instrumentation due to its reliable performance and specific spectral output.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Metal Can |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -55°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Viewing Angle | 80° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 16mW/sr @ 100mA |
