OD-880L
EMITTER IR 880NM 100MA TO-46Manufacturer: Opto Diode Corp
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

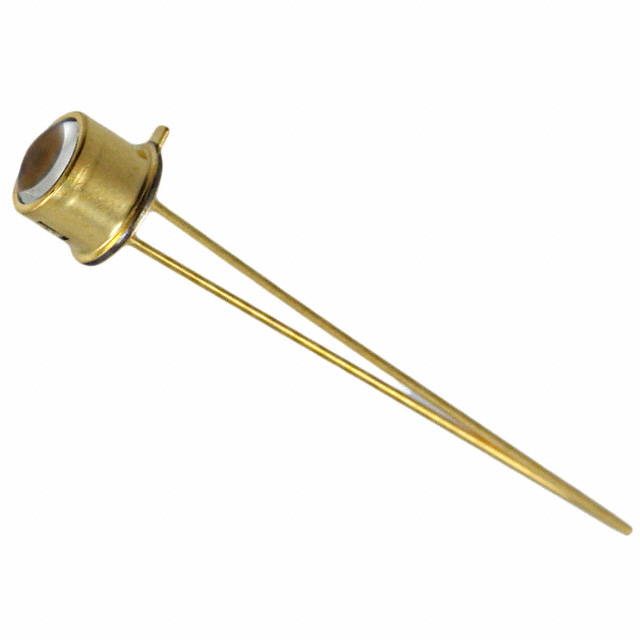

Opto Diode Corp OD-880L is an infrared (IR) emitter with a peak wavelength of 880nm. This component features a forward voltage of 1.55V (typical) and a maximum DC forward current of 100mA. The radiant intensity is specified as 50mW/sr at 100mA, with a viewing angle of 35°. The OD-880L is housed in a TO-46-2 metal can package with a lens top for directional emission. It is designed for through-hole mounting and operates within an ambient temperature range of -55°C to 100°C. This component is suitable for applications in security, industrial automation, and optical sensing systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -55°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.55V |
| Viewing Angle | 35° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 50mW/sr @ 100mA |
