TL431BVLPRAG
IC VREF SHUNT ADJ 0.4% TO92Manufacturer: onsemi
Categories: Voltage Reference
Quality Control: Learn More

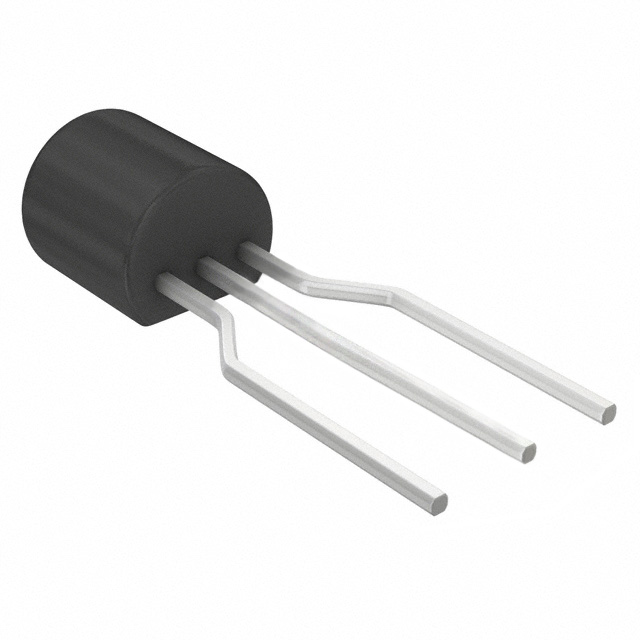

The onsemi TL431BVLPRAG is an adjustable shunt voltage reference IC, offering a precise 2.495V minimum output with a maximum of 36V. This component features a tight ±0.4% tolerance and a typical temperature coefficient of 50ppm/°C, ensuring stable performance across its -40°C to 125°C operating temperature range. With a cathode current of 1 mA and an output current capability of 100 mA, it is suitable for applications requiring accurate voltage regulation. The TL431BVLPRAG is supplied in a standard TO-92 (TO-226) package, presented in Tape & Reel (TR) for automated assembly. This device finds application in power supplies, battery chargers, and voltage monitoring circuits within the consumer electronics and industrial automation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.4% |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-226-3, TO-92-3 Long Body, Formed Leads |
| Temperature Coefficient | 50ppm/°C Typical |
| Output Type | Adjustable |
| Mounting Type | Through Hole |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Current - Supply | - |
| Supplier Device Package | TO-92 (TO-226) |
| Voltage - Output (Min/Fixed) | 2.495V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Current - Cathode | 1 mA |
| Current - Output | 100 mA |
| Voltage - Output (Max) | 36 V |
