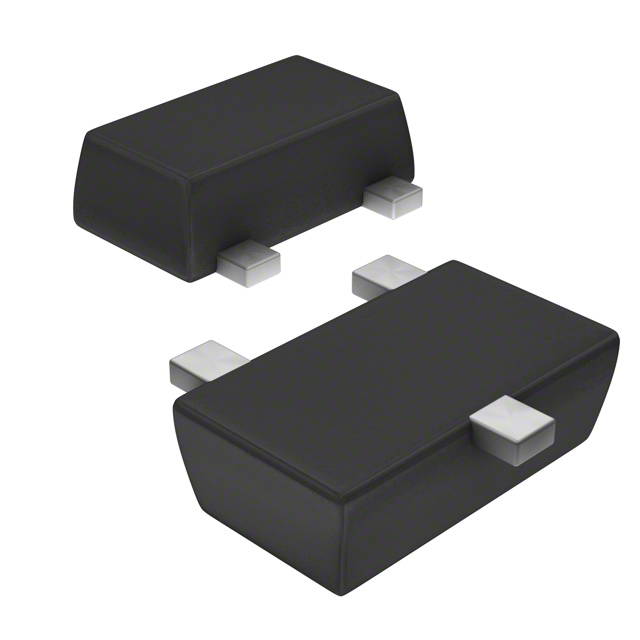

TL431AIDMR2
IC VREF SHUNT ADJ 1% MICRO8Manufacturer: onsemi
Categories: Voltage Reference
Quality Control: Learn More
onsemi TL431AIDMR2 is a three-terminal adjustable shunt voltage reference. This device offers a highly stable output voltage with a wide operating range. The output voltage is adjustable from 2.495V up to 36V by utilizing two external resistors. With a typical temperature coefficient of 50ppm/°C and a tolerance of ±1%, it is suitable for applications requiring precise voltage regulation. The TL431AIDMR2 supports a cathode current from 1mA to 100mA, making it versatile for various power supply designs, battery management systems, and instrumentation. The component is supplied in an 8-MSOP package, designed for surface mounting, and is available on tape and reel. It finds application in areas such as power supplies, battery chargers, and general voltage regulation circuits.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Tolerance | ±1% |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-TSSOP, 8-MSOP (0.118"", 3.00mm Width) |
| Temperature Coefficient | 50ppm/°C Typical |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Current - Supply | - |
| Supplier Device Package | 8-MSOP |
| Voltage - Output (Min/Fixed) | 2.495V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Current - Cathode | 1 mA |
| Current - Output | 100 mA |
| Voltage - Output (Max) | 36 V |
