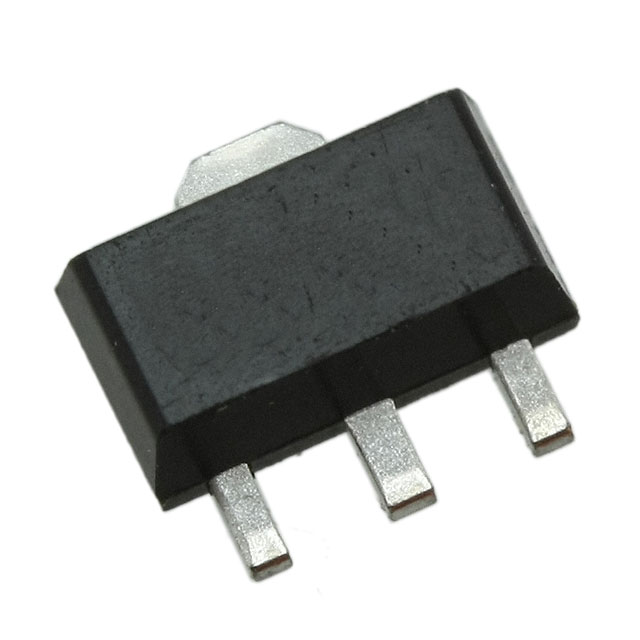

LM431SCCMLX
IC VREF SHUNT ADJ 0.5% SOT89-3Manufacturer: onsemi
Categories: Voltage Reference
Quality Control: Learn More
The onsemi LM431SCCMLX is an adjustable shunt voltage reference IC, offering precise regulation with a ±0.5% tolerance. This component is designed for applications requiring a stable reference voltage, featuring an output adjustable from 2.495V up to 36V. With a maximum cathode current of 100 mA, it is suitable for a wide range of power management and control circuits. The typical temperature coefficient of 50ppm/°C ensures reliable performance across its operating temperature range of -25°C to 85°C. Packaged in a SOT-89-3 (TO-243AA) surface-mount configuration and supplied on tape and reel, the LM431SCCMLX is commonly utilized in industrial control, automotive electronics, and consumer goods sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 25 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Tolerance | ±0.5% |
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-243AA |
| Temperature Coefficient | 50ppm/°C Typical |
| Output Type | Adjustable |
| Mounting Type | Surface Mount |
| Voltage - Input | - |
| Reference Type | Shunt |
| Operating Temperature | -25°C ~ 85°C (TA) |
| Current - Supply | - |
| Supplier Device Package | SOT-89-3 |
| Voltage - Output (Min/Fixed) | 2.495V |
| Noise - 0.1Hz to 10Hz | - |
| Noise - 10Hz to 10kHz | - |
| Current - Cathode | 1 mA |
| Current - Output | 100 mA |
| Voltage - Output (Max) | 36 V |
