EC2C01C-TR
DIODE VAR CAP SINGLE 15V 18.5PFManufacturer: onsemi
Categories: Variable Capacitance (Varicaps, Varactors)
Quality Control: Learn More

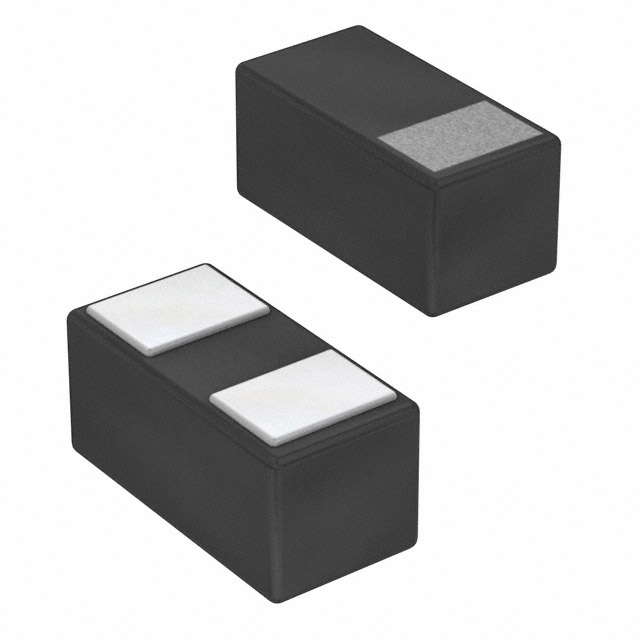

onsemi EC2C01C-TR is a single, surface-mount varicap diode packaged in a 2-ECSP1008 (2-UDFN) format. This component offers a nominal capacitance of 4.5pF at 4V and 1MHz, with a capacitance ratio of 5.0 (C1/C4). It is rated for a peak reverse voltage of 15V. The EC2C01C-TR is suitable for applications in RF tuning, voltage-controlled oscillators, and frequency modulation circuits within the telecommunications and consumer electronics industries.
Additional Information
Series: -RoHS Status: Not applicableManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-UDFN |
| Mounting Type | Surface Mount |
| Diode Type | Single |
| Capacitance @ Vr, F | 4.5pF @ 4V, 1MHz |
| Q @ Vr, F | - |
| Capacitance Ratio Condition | C1/C4 |
| Supplier Device Package | 2-ECSP1008 |
| Voltage - Peak Reverse (Max) | 15 V |
| Capacitance Ratio | 5.0 |
