SZNZL6V8AXV3T1G
TVS DIODE 4.5VWM 11.9VC SC89-3Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

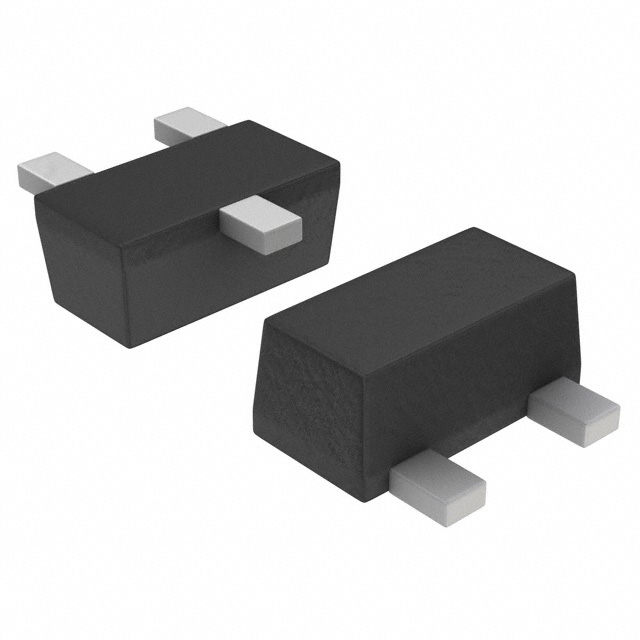

onsemi SZNZL6V8AXV3T1G is a unidirectional transient voltage suppressor (TVS) diode designed for robust overvoltage protection. This AEC-Q101 qualified component offers a reverse standoff voltage of 4.5V and a breakdown voltage of 6.46V (minimum). It features a low clamping voltage of 11.9V at a peak pulse current of 6.7A (10/1000µs), with a peak pulse power rating of 73W. The SZNZL6V8AXV3T1G is housed in a compact SC-89-3 surface mount package, suitable for demanding applications in the automotive sector. It operates across a wide temperature range of -55°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-89, SOT-490 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 6.7A |
| Voltage - Reverse Standoff (Typ) | 4.5V |
| Supplier Device Package | SC-89-3 |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 6.46V |
| Voltage - Clamping (Max) @ Ipp | 11.9V |
| Power - Peak Pulse | 73W |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
