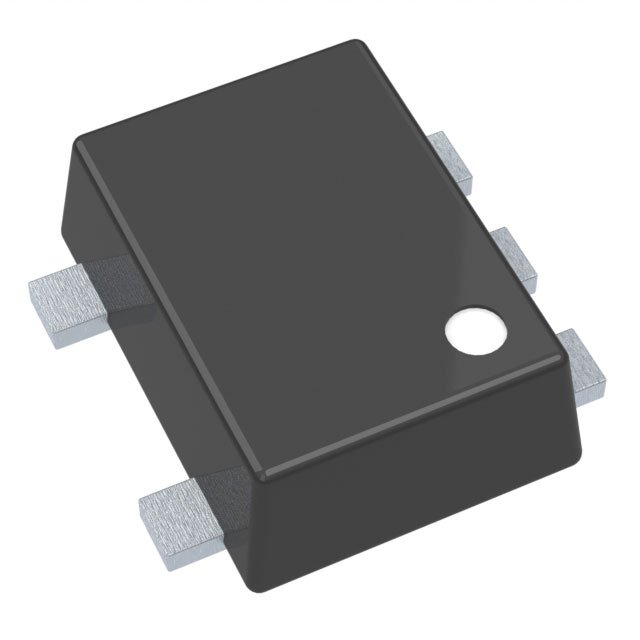

SZNUP4016P5T5G
TVS DIODE 5VWM SOT953Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi SZNUP4016P5T5G is a transient voltage suppressor (TVS) diode designed for robust protection in automotive applications. This surface mount component, housed in a SOT-953 package, offers a 5V reverse standoff voltage with a minimum breakdown voltage of 5.5V. Featuring four unidirectional channels, it provides effective overvoltage protection. The low capacitance of 0.5 pF at 1 MHz makes it suitable for high-speed data line protection. This device adheres to AEC-Q101 qualification standards, ensuring reliability in demanding environments. Its operating temperature range of -40°C to 125°C (TJ) further underscores its suitability for automotive systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-953 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | 0.5pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | SOT-953 |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
