SZNUP3112UPMUTAG
TVS DIODE 4VWM 6UDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

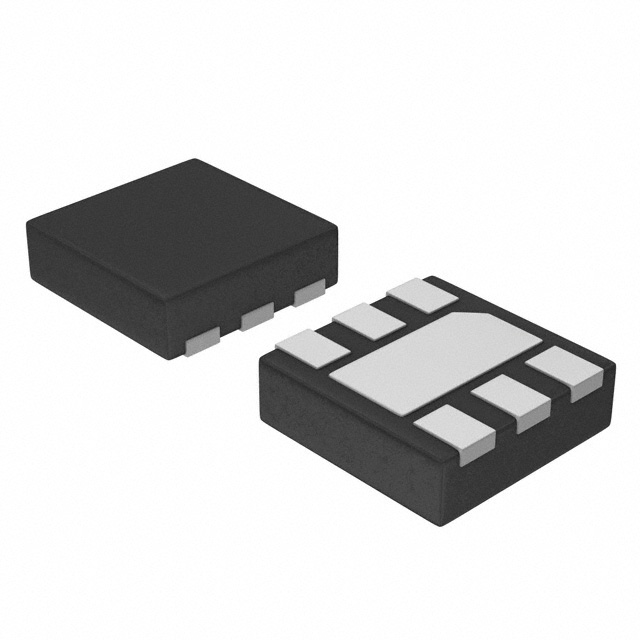

The onsemi SZNUP3112UPMUTAG is a 3-channel unidirectional TVS diode designed for transient voltage suppression. Featuring a 4V reverse standoff voltage and a 5.2V minimum breakdown voltage, this component offers robust protection. It is housed in a compact 6-UDFN (1.6x1.6) package with an exposed pad for efficient heat dissipation, suitable for surface mount applications. The device exhibits a low capacitance of 0.7pF at 1MHz, minimizing signal integrity impact in high-speed circuits. Qualified to AEC-Q101 and rated for automotive applications, it operates reliably across a wide temperature range of -40°C to 125°C (TJ). This onsemi TVS diode is engineered for power line protection, ensuring system integrity against voltage spikes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | 0.7pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 4V |
| Supplier Device Package | 6-UDFN (1.6x1.6) |
| Unidirectional Channels | 3 |
| Voltage - Breakdown (Min) | 5.2V |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
| Grade | Automotive |
| Qualification | AEC-Q101 |
