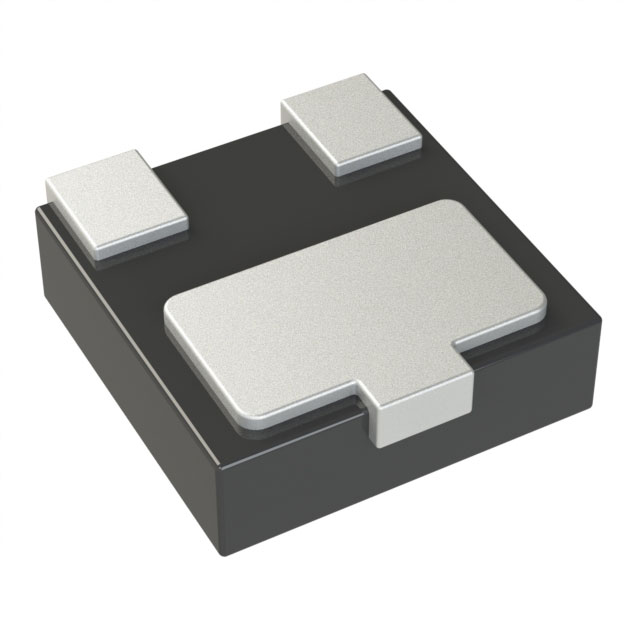

SZNUP2124MXWTAG
28V CAN-FD ESD PROTECTION IN WDFManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi SZNUP2124MXWTAG is a bidirectional TVS diode designed for robust transient voltage suppression. This component features a 24V reverse standoff voltage and a minimum breakdown voltage of 26V. It offers a clamping voltage of 40V at a peak pulse current of 3A (8/20µs), with a peak pulse power rating of 120W. The device boasts a low capacitance of 6pF at 1MHz, making it suitable for high-speed data lines.
Engineered for automotive applications, this device meets AEC-Q101 qualification standards. Its 3-XDFNW (1x1) wettable flank surface mount package facilitates automated assembly and enhanced solder joint reliability. The SZNUP2124MXWTAG is capable of operating across a wide temperature range from -55°C to 175°C (TJ). This TVS diode is commonly implemented in automotive communication systems, including CAN-FD interfaces, for protection against electrostatic discharge events.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | 6pF @ 1MHz (Max) |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Supplier Device Package | 3-XDFNW (1x1) |
| Bidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 26V |
| Voltage - Clamping (Max) @ Ipp | 40V |
| Power - Peak Pulse | 120W |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
