SZESDM3551N2T5G
BIDIRECTIONAL 5V MID-CAP SURGE IManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

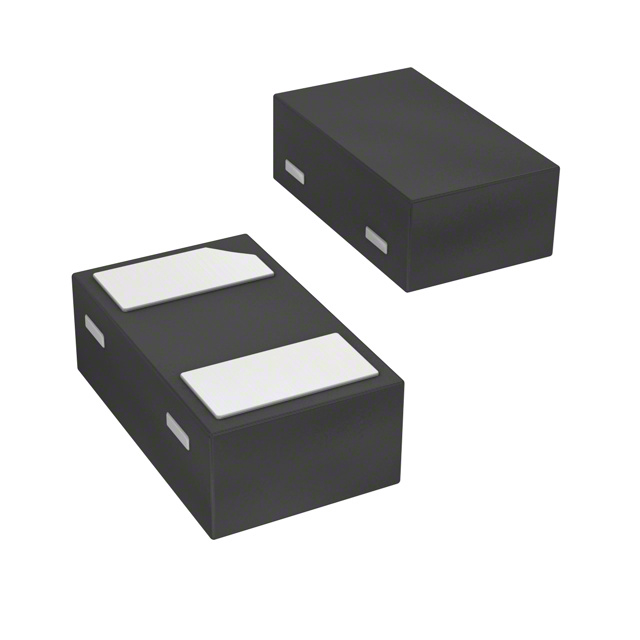

The onsemi SZESDM3551N2T5G is a bidirectional transient voltage suppressor (TVS) diode designed for robust surge protection. This automotive-grade component features a 5.5V reverse standoff voltage and a breakdown voltage of 5.6V minimum. It offers a low clamping voltage of 8.2V at a peak pulse current of 9.9A (8/20µs). With a typical capacitance of 21pF at 1MHz, it is suitable for high-speed data lines, particularly in USB applications. The device is housed in a compact 2-X2DFN (1x0.6) surface-mount package, supplied on tape and reel. Operating across a wide temperature range of -55°C to 150°C (TJ), the SZESDM3551N2T5G meets AEC-Q101 qualification standards for automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | USB |
| Capacitance @ Frequency | 21pF @ 1MHz (Max) |
| Current - Peak Pulse (10/1000µs) | 9.9A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Supplier Device Package | 2-X2DFN (1x0.6) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 5.6V |
| Voltage - Clamping (Max) @ Ipp | 8.2V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
