SZESD8451N2T5G
TVS DIODE 3.3VWM 19VC 2XDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

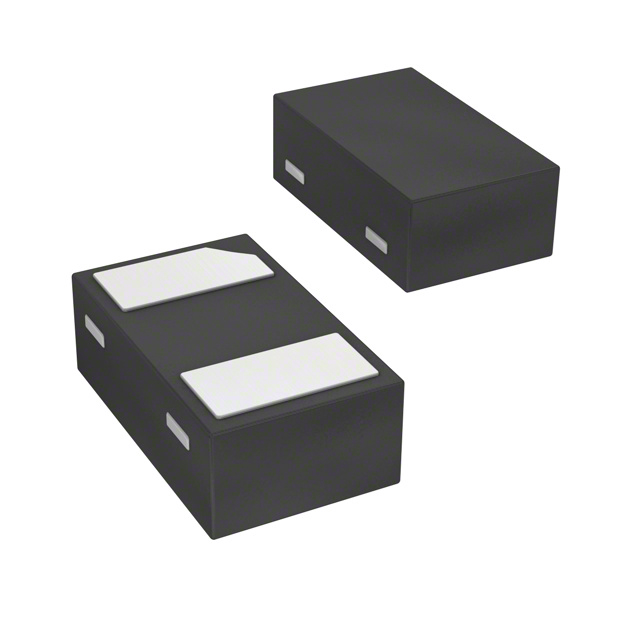

The onsemi SZESD8451N2T5G is a bidirectional transient voltage suppressor (TVS) diode designed for robust surge protection. This surface mount component, housed in a compact 2-XDFN (1x0.6, SOD-882) package, features a 3.3V reverse standoff voltage and a low 19V clamping voltage at a peak pulse current of 16A (100ns pulse duration). With a minimal 0.2pF capacitance at 1MHz, it is suitable for high-speed data lines. The device operates across a wide temperature range of -55°C to 125°C and meets AEC-Q101 qualification, making it ideal for automotive applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | 0.2pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 16A (100ns) |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | 2-XDFN (1x0.6) (SOD-882) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 19V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
