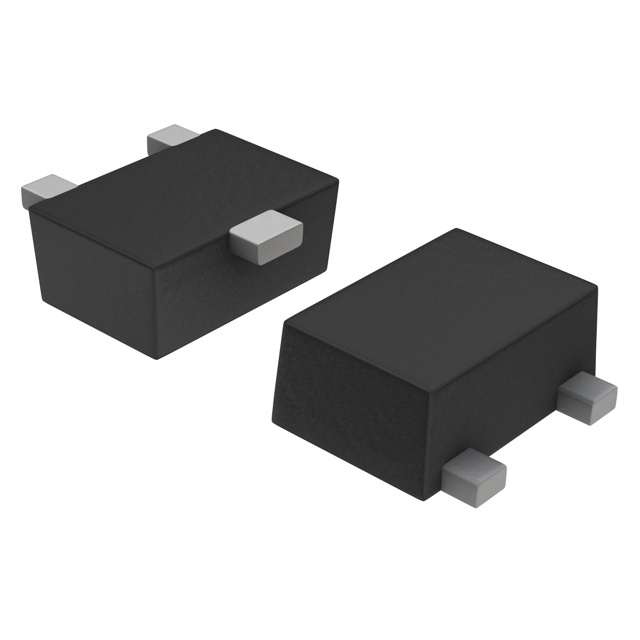

The onsemi SZESD7C5-0DT5G is a surface-mount Transient Voltage Suppressor (TVS) diode designed for robust protection. This Zener-type device operates with a reverse standoff voltage of 5V (typical) and a breakdown voltage of 11V (minimum). Featuring a low junction capacitance of 6pF at 1MHz, it is suitable for high-speed signal lines. The SZESD7C5-0DT5G is housed in a compact SOT-723 package and operates across a temperature range of -55°C to 150°C. Qualified to AEC-Q101 standards and designated for automotive applications, this unidirectional device offers reliable overvoltage protection in demanding environments.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | SOT-723 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | 6pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | SOT-723 |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 11V |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
