SZESD7424MUT5G
24V PROTECTION IN UDFN2Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
onsemi's SZESD7424MUT5G is a bidirectional TVS diode designed for robust transient voltage suppression. This component features a 24V reverse standoff voltage and a breakdown voltage of 26V minimum. With a 16A peak pulse current rating and a typical clamping voltage of 45V at 16A, it offers effective protection against voltage surges. The low 0.6pF capacitance at 1MHz makes it suitable for high-speed data lines. Manufactured in a compact 2-UDFN (1.6x1) package and supplied on tape and reel, the SZESD7424MUT5G is ideal for surface mounting. Its AEC-Q101 qualification and operation from -55°C to 150°C (TJ) ensure reliability in demanding environments. Applications include telecommunications and USB interfaces.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

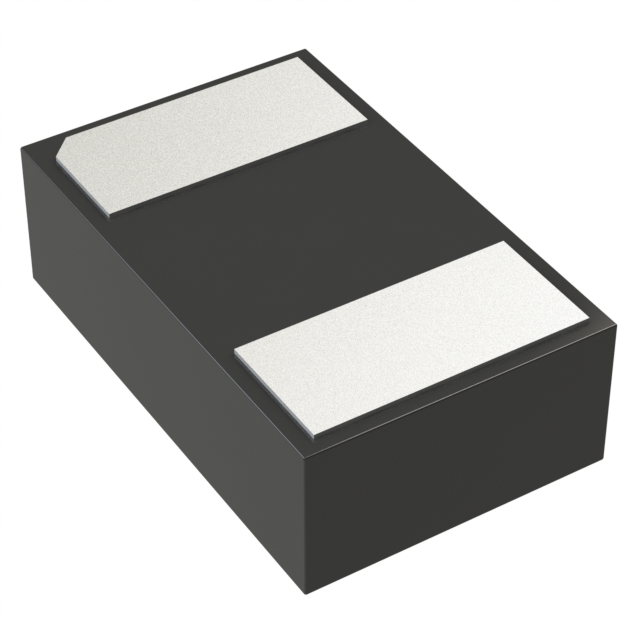

| Package / Case | 2-UDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | Telecom, USB |
| Capacitance @ Frequency | 0.6pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 16A |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Supplier Device Package | 2-UDFN (1.6x1) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 26V |
| Voltage - Clamping (Max) @ Ipp | 45V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
