SZESD7102BT1G
TVS DIODE 5VWM 30VC SC75 SOT416Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi SZESD7102BT1G is a transient voltage suppressor (TVS) diode designed for robust protection. This automotive-grade component features a 5V reverse standoff voltage and a low clamping voltage of 30V (Typ) at a peak pulse current of 16A (10/1000µs). With a breakdown voltage of 16.5V (Min), it effectively safeguards sensitive circuitry. The SZESD7102BT1G offers a low capacitance of 0.3pF @ 1MHz, minimizing signal integrity impact. Its SC-75, SOT-416 package is suitable for surface mount applications. Operating across a temperature range of -55°C to 150°C (TJ), this AEC-Q101 qualified device is ideal for automotive applications requiring reliable overvoltage protection. The component is supplied in Tape & Reel (TR) packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

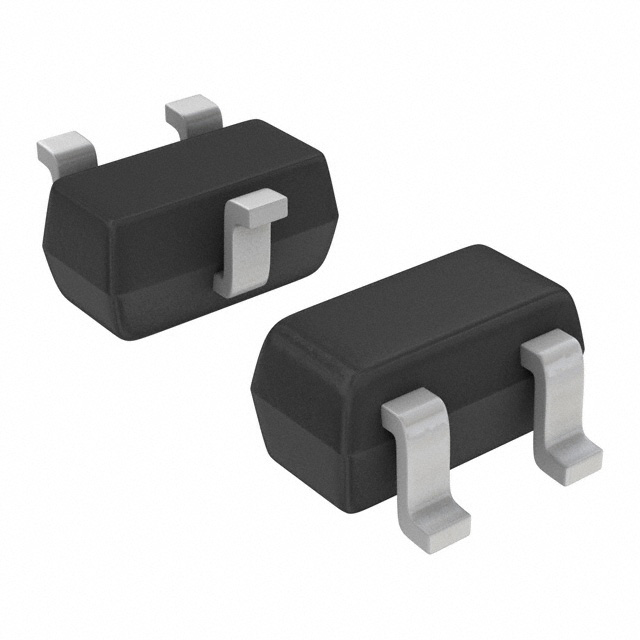

| Package / Case | SC-75, SOT-416 |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | 0.3pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 16A |
| Voltage - Reverse Standoff (Typ) | 5V |
| Supplier Device Package | SC-75, SOT-416 |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 16.5V |
| Voltage - Clamping (Max) @ Ipp | 30V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
