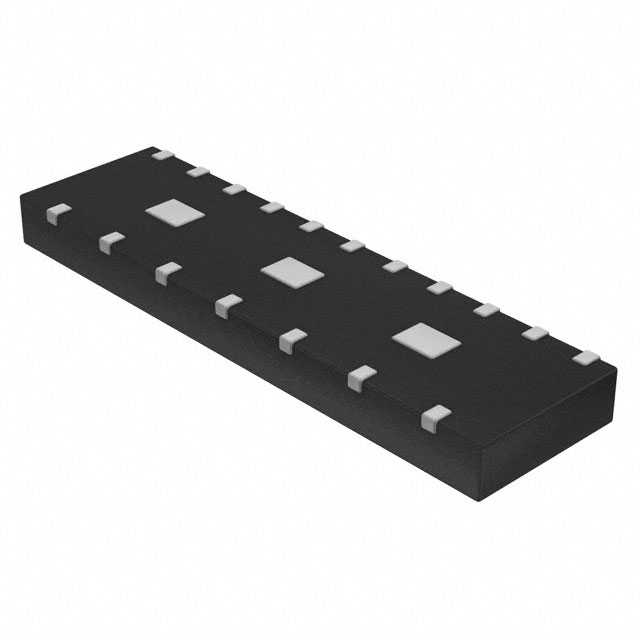

SZESD7008MUTAG
TVS DIODE 5VWM 10VC 18UDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi SZESD7008MUTAG is an 8-channel transient voltage suppressor (TVS) diode designed for robust protection in demanding applications. This surface mount component, housed in an 18-UDFN (5.5x1.5) package, offers a 5V reverse standoff voltage and a 10V maximum clamping voltage at a peak pulse current of 8A. Its low capacitance of 0.12pF at 1MHz makes it suitable for high-speed interfaces, particularly in automotive applications qualifying to AEC-Q101 standards. The SZESD7008MUTAG operates across a wide temperature range from -55°C to 125°C (TJ). It finds utility in protecting sensitive circuitry within automotive systems and other high-performance electronic designs requiring effective ESD mitigation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 18-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | HDMI |
| Capacitance @ Frequency | 0.12pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | 18-UDFN (5.5x1.5) |
| Unidirectional Channels | 8 |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 10V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
