SSESD11N5.0ST5G
TVS DIODE 5VWM 12VC 2DSNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

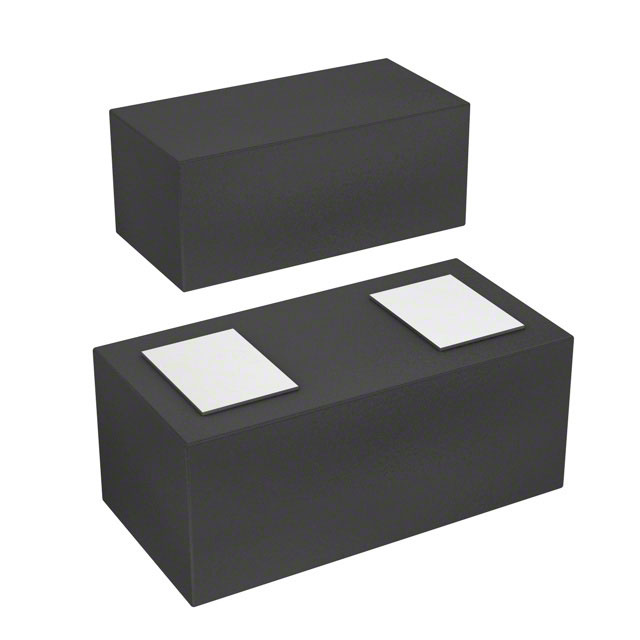

The onsemi ESD11N series TVS diode, part number SSESD11N5-0ST5G, offers robust transient voltage suppression for sensitive electronic components. This bidirectional device features a 5V reverse standoff voltage and a low 12V maximum clamping voltage at a peak pulse current of 1A (8/20µs). Designed for surface mount applications, it is housed in a compact 0201 (0603 Metric) 2-DSN package (0.60x0.30), ideal for space-constrained designs. Operating across a temperature range of -40°C to 125°C (TJ), this TVS diode is commonly utilized in USB interfaces and other applications requiring protection against electrostatic discharge. The component is supplied in a Tape & Reel (TR) package.
Additional Information
Series: ESD11NRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | USB |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | 2-DSN (0.60x0.30) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 5.8V |
| Voltage - Clamping (Max) @ Ipp | 12V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
