SSESD11B5.0ST5G
TVS DIODE 5VWM 10VC 2DSNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

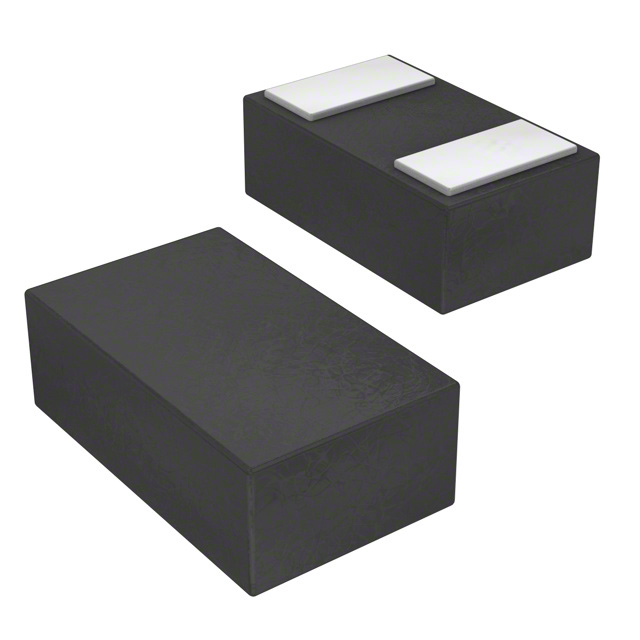

The onsemi SSESD11B5-0ST5G is a unidirectional transient voltage suppressor (TVS) diode designed for robust overvoltage protection. This component features a 5V reverse standoff voltage and a 5.8V minimum breakdown voltage. It offers a low 10V clamping voltage at a peak pulse current (Ipp) of 1A (8/20µs). The SSESD11B5-0ST5G is housed in a compact 2-DSN (0.60x0.30) package, specifically the 0201 (0603 Metric) footprint, suitable for surface mounting. Operating across a temperature range of -40°C to 125°C (TJ), this TVS diode is commonly utilized in general-purpose applications across various industries requiring reliable protection against transient voltage events. It is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0201 (0603 Metric) |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | 2-DSN (0.60x0.30) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 5.8V |
| Voltage - Clamping (Max) @ Ipp | 10V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
