SESD9L3.3ST5G
TVS DIODE 3.3VWM 9VC SOD923Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

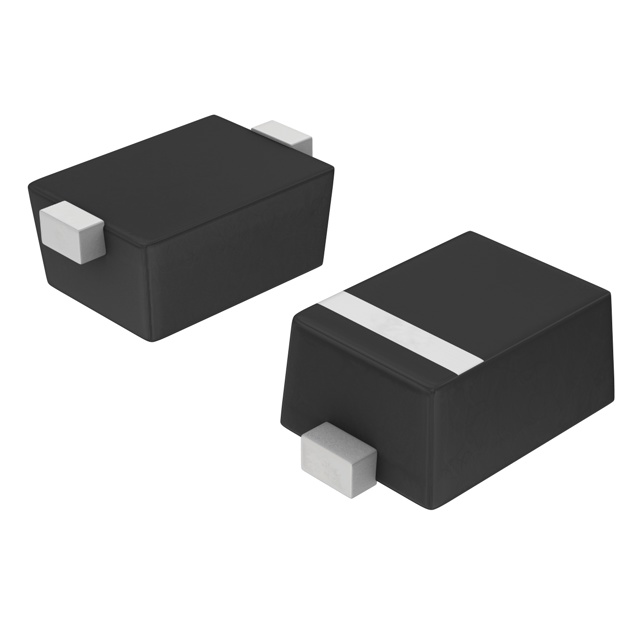

onsemi SESD9L3-3ST5G is a unidirectional Transient Voltage Suppressor (TVS) diode in a SOD-923 surface mount package. Designed for robust protection, this component features a reverse standoff voltage of 3.3V and a breakdown voltage of 4.8V minimum. It offers a clamping voltage of 9V at peak pulse current. With a low capacitance of 0.5pF at 1MHz, it is suitable for high-speed data lines. The device operates across a wide temperature range of -55°C to 150°C (TJ) and is AEC-Q101 qualified, making it ideal for automotive applications. This TVS diode is commonly employed in general-purpose protection schemes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-923 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.5pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | SOD-923 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 4.8V |
| Voltage - Clamping (Max) @ Ipp | 9V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | Automotive |
| Qualification | AEC-Q101 |
