PACDN1408CG
TVS DIODE 5.5VWM 8VC 10WLCSPManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

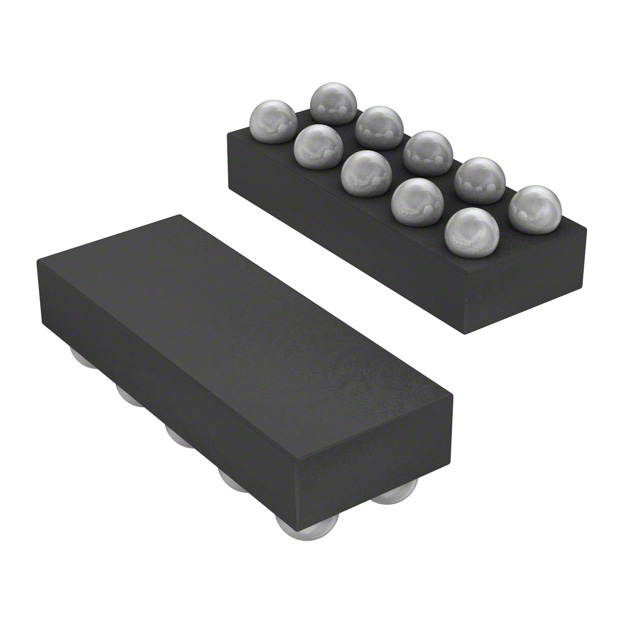

The onsemi PACDN1408CG is a transient voltage suppressor (TVS) diode designed for robust protection in electronic systems. Featuring a 5.5V reverse standoff voltage and an 8V maximum clamping voltage at peak pulse current, this component effectively safeguards sensitive circuitry from voltage transients. Its 10-WLCSP package, measuring 3.1x1.15mm, is ideal for space-constrained applications. The device offers 8 unidirectional channels, enabling comprehensive protection across multiple lines. Operating within a temperature range of -40°C to 85°C, the PACDN1408CG is suitable for general-purpose applications across various industries, including automotive, consumer electronics, and industrial control systems, where reliable overvoltage protection is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-WFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5.5V (Min) |
| Supplier Device Package | 10-WLCSP (3.1x1.15) |
| Unidirectional Channels | 8 |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | 8V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
