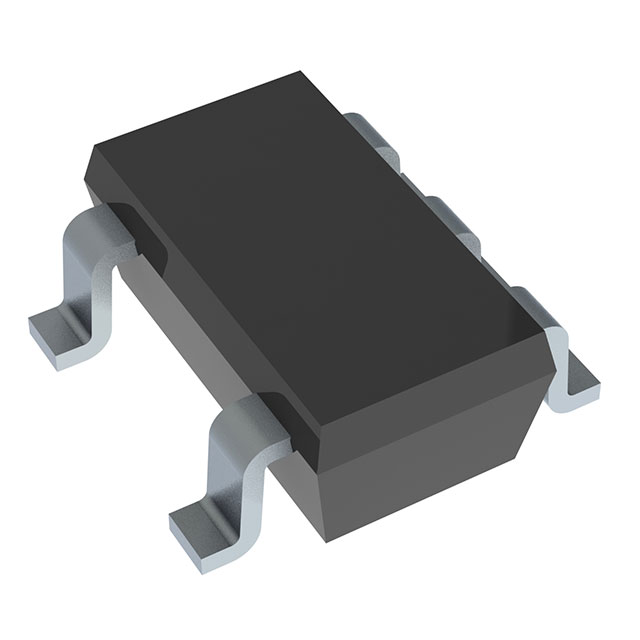

PACDN044Y5R
TVS DIODE 5.5VWM 8VC SOT23-5Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
onsemi PACDN044Y5R is a transient voltage suppressor (TVS) diode designed for robust protection. This component offers a reverse standoff voltage of 5.5V and a clamping voltage of 8V at peak pulse current. Featuring a breakdown voltage of 6.2V (minimum), it effectively safeguards sensitive circuitry. The device is housed in a SOT-23-5 (SC-74A, SOT-753) surface mount package, suitable for automated assembly. Operating within a temperature range of -40°C to 85°C, this TVS diode is utilized in general-purpose applications, providing reliable protection across various electronic systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-74A, SOT-753 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5.5V |
| Supplier Device Package | SOT-23-5 |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6.2V |
| Voltage - Clamping (Max) @ Ipp | 8V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
