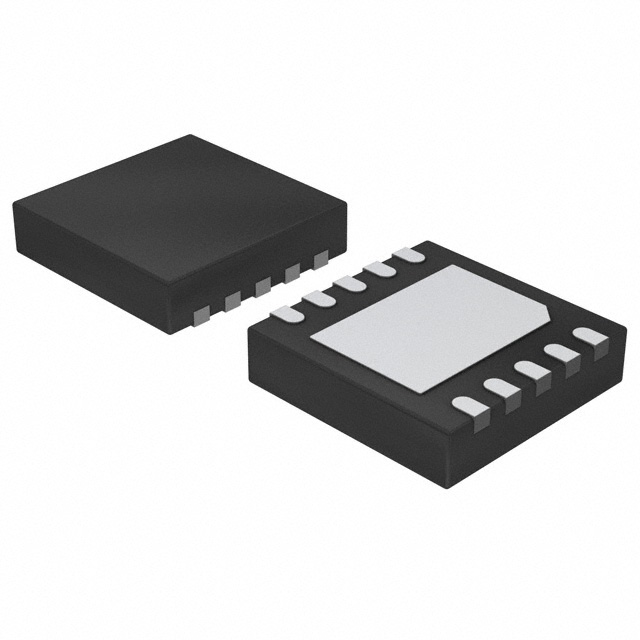

NUP4105MUTAG
TVS DIODE 3.3VWM 14VC 10UDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi NUP4105MUTAG is a four-channel, bidirectional steering Transient Voltage Suppressor (TVS) diode designed for robust overvoltage protection. Featuring a reverse standoff voltage of 3.3V (Typ) and a clamping voltage of 14V at a peak pulse current of 25A (8/20µs), this component offers a peak pulse power of 450W. Its low capacitance of 3pF @ 1MHz makes it suitable for high-speed data line protection. The NUP4105MUTAG is housed in a compact 10-UDFN (2.6x2.6) package, facilitating surface mount integration. Operating across a temperature range of -40°C to 125°C (TJ), it is ideal for applications requiring efficient power line protection and general-purpose overvoltage suppression in consumer electronics and industrial equipment. The device is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 3pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 25A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | 10-UDFN (2.6x2.6) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 5V |
| Voltage - Clamping (Max) @ Ipp | 14V |
| Power - Peak Pulse | 450W |
| Power Line Protection | Yes |
