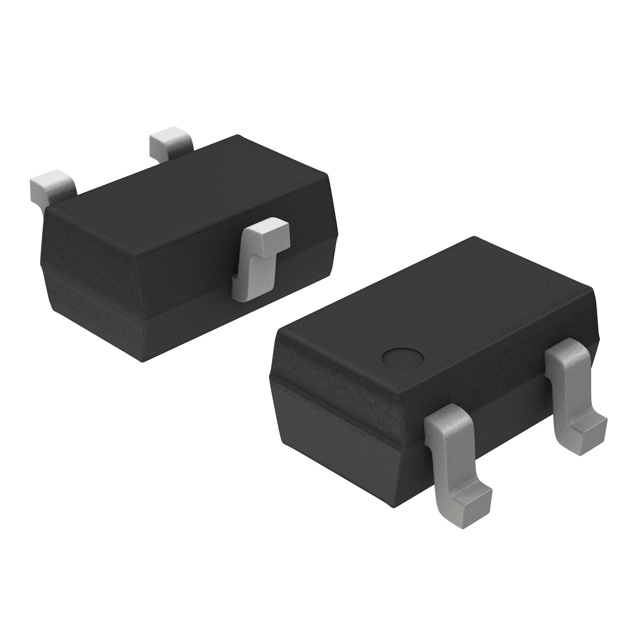

NUP2128WTT1G
TVS DIODE 26.5VWM 50VC SC70Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi NUP2128WTT1G is a bidirectional Transient Voltage Suppressor (TVS) diode designed for robust protection in demanding applications. Featuring 26.5V reverse standoff voltage and a 50V clamping voltage at 3.5A (8/20µs), this component offers significant surge current handling capability. Its low capacitance of 11.5pF at 1MHz makes it suitable for high-speed data lines, including CAN interfaces. The device boasts a 150W peak pulse power rating and operates efficiently across a wide temperature range of -55°C to 175°C. Supplied in an SC-70-3 (SOT323) surface mount package, the NUP2128WTT1G is ideal for space-constrained designs in automotive and industrial sectors. This component is presented in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SC-70, SOT-323 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Applications | CAN |
| Capacitance @ Frequency | 11.5pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 3.5A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 26.5V (Max) |
| Supplier Device Package | SC-70-3 (SOT323) |
| Bidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 28V |
| Voltage - Clamping (Max) @ Ipp | 50V |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
