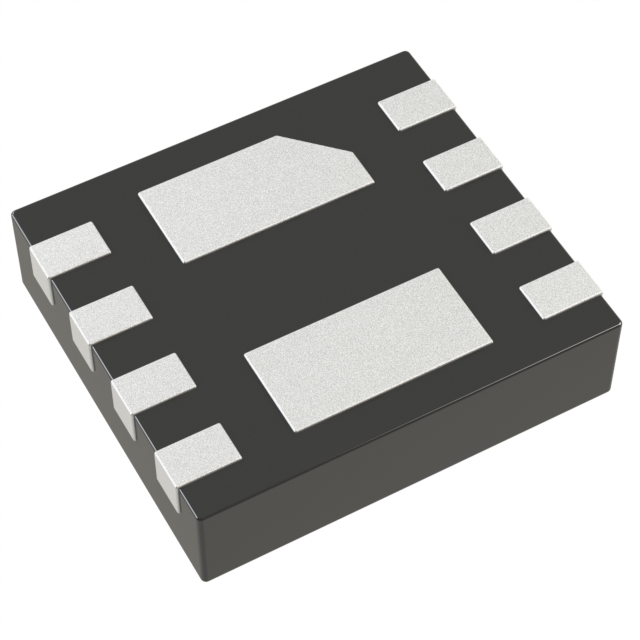

NSPU5221MUTBG
TVS DIODE 22VWM 35VC 6UDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi NSPU5221MUTBG is a unidirectional Transient Voltage Suppressor (TVS) diode designed for robust surge protection. Featuring a 22V reverse standoff voltage and a 24V minimum breakdown voltage, this component offers a 35V maximum clamping voltage at a peak pulse current of 120A (8/20µs). Its compact 6-UDFN (1.8x2) surface-mount package, supplied on tape and reel, makes it suitable for space-constrained applications. The NSPU5221MUTBG operates across a temperature range of -55°C to 125°C and is utilized in general-purpose protection schemes across various industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-UFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 120A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 22V |
| Supplier Device Package | 6-UDFN (1.8x2) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 24V |
| Voltage - Clamping (Max) @ Ipp | 35V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
