NSPU3061N2T5G
TVS DIODE 6.3VWM 10.4VC 2X2DFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

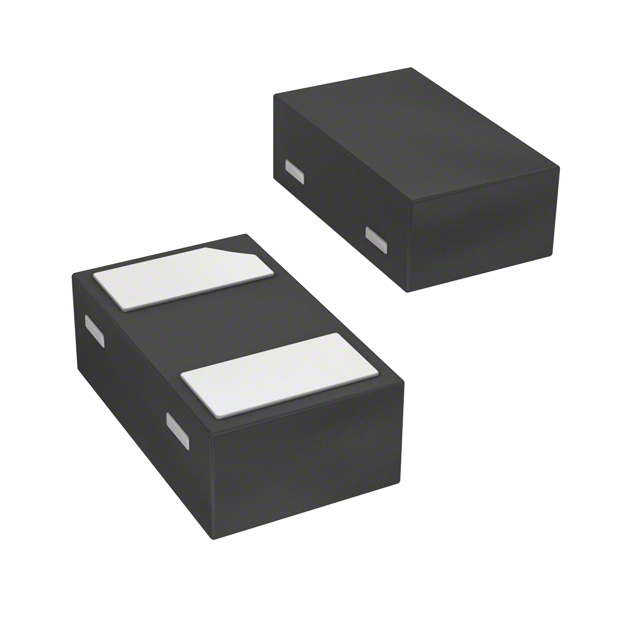

The onsemi NSPU3061N2T5G is a unidirectional transient voltage suppressor (TVS) diode designed for robust protection. Featuring a 6.3V reverse standoff voltage and a 10.4V maximum clamping voltage at 30A (8/20µs), this component provides effective surge suppression. Its low capacitance of 90pF at 1MHz makes it suitable for high-speed data lines. The device is housed in a compact 2-X2DFN (1x0.6) package, facilitating surface mount assembly on PCBs. Operating across a wide temperature range of -65°C to 150°C, the NSPU3061N2T5G finds application in general-purpose protection circuits across various industries requiring reliable overvoltage mitigation, including automotive and industrial electronics. The component is supplied in Tape & Reel packaging for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 90pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 30A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 6.3V (Max) |
| Supplier Device Package | 2-X2DFN (1x0.6) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6.4V |
| Voltage - Clamping (Max) @ Ipp | 10.4V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
