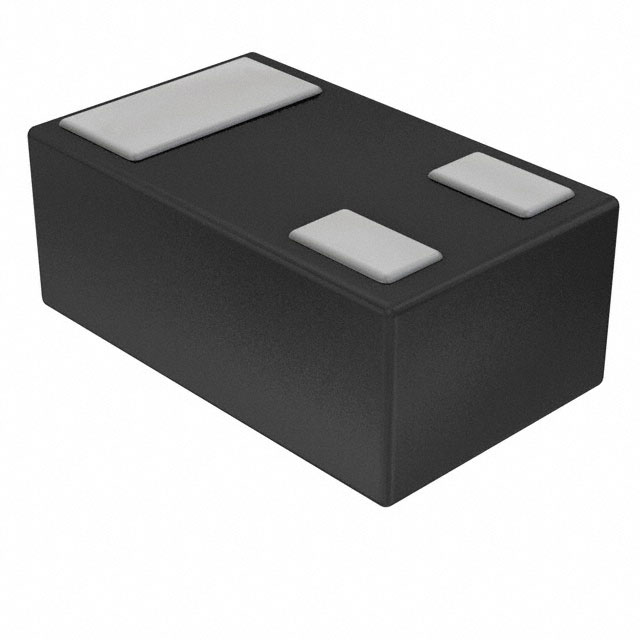

The onsemi NSPM2052MUT5G is a unidirectional TVS diode designed for transient voltage suppression. This surface mount component, housed in a 3-UDFN (1.6x1) package, offers a reverse standoff voltage of 5V (Max). Its breakdown voltage is a minimum of 5.1V, with a clamping voltage of 9V at a peak pulse current (Ipp) of 120A (8/20µs). The device exhibits a capacitance of 400pF at 1MHz. Operating within a temperature range of -65°C to 150°C (TJ), this TVS diode is suitable for applications requiring robust protection against voltage surges. It is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-UDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -65°C ~ 150°C (TJ) |
| Applications | - |
| Capacitance @ Frequency | 400pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 120A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | 3-UDFN (1.6x1) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 5.1V |
| Voltage - Clamping (Max) @ Ipp | 9V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
