MMBZ15VALT3G
TVS DIODE 12VWM 21VC SOT23-3Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

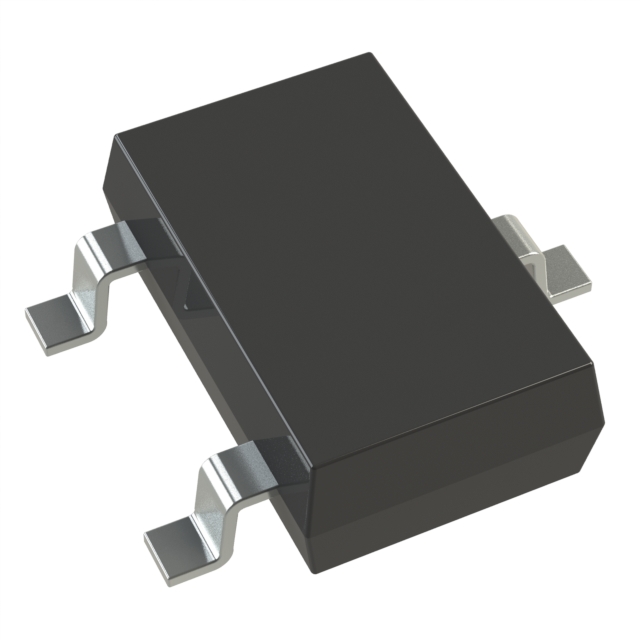

The onsemi MMBZ15VALT3G is a transient voltage suppressor (TVS) diode designed for robust protection in demanding applications. This surface mount device, housed in a SOT-23-3 (TO-236) package, offers a 12V reverse standoff voltage and a 14.25V minimum breakdown voltage. It features a 21V clamping voltage at a peak pulse current of 1.9A (10/1000µs), providing a 40W peak pulse power rating. Engineered for general-purpose applications, this TVS diode is suitable for protecting sensitive circuitry in automotive, industrial, and consumer electronics sectors from voltage transients. The operating temperature range is -55°C to 150°C (TJ).
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | TO-236-3, SC-59, SOT-23-3 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1.9A |
| Voltage - Reverse Standoff (Typ) | 12V |
| Supplier Device Package | SOT-23-3 (TO-236) |
| Unidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 14.25V |
| Voltage - Clamping (Max) @ Ipp | 21V |
| Power - Peak Pulse | 40W |
| Power Line Protection | No |
