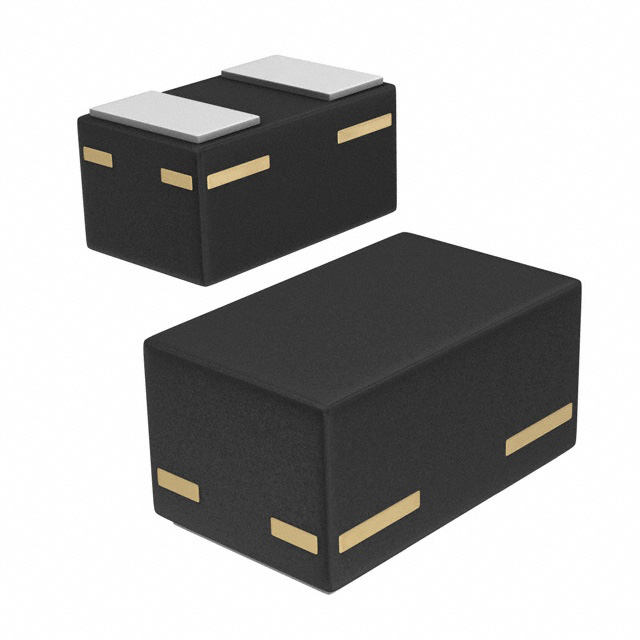

FESD05P30ZL
TVS DIODE 5.5VWM 8.8VC SOD882Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi FESD05P30ZL is a transient voltage suppressor (TVS) diode designed for robust protection in electronic systems. This surface mount component, housed in a compact SOD-882 package, offers a reverse standoff voltage of 5.5V (Typ) and a clamping voltage of 8.8V (Typ) at a peak pulse current of 5A (10/1000µs). Featuring a breakdown voltage of 6.2V (Min), the FESD05P30ZL provides effective protection against voltage transients with a low capacitance of 31pF @ 1MHz. Operating within a temperature range of -55°C to 150°C (TJ), this unidirectional TVS diode is suitable for general-purpose applications across various industries including automotive, consumer electronics, and industrial automation where safeguarding sensitive circuitry from surge events is critical.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-882 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 31pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 5A |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Supplier Device Package | SOD-882 |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6.2V |
| Voltage - Clamping (Max) @ Ipp | 8.8V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
