ESDR0544MDMR4G
TVS DIODE 5VWM 10MICROManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

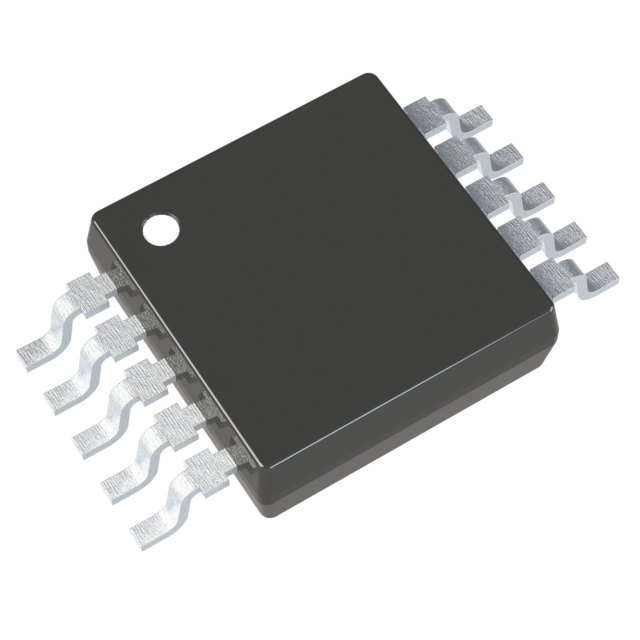

onsemi ESDR0544MDMR4G is a steering TVS diode designed for robust transient voltage suppression. This 4-channel unidirectional device offers a reverse standoff voltage of 5V and a breakdown voltage of 6V. Featuring a low 0.7pF capacitance at 1MHz, it is ideal for protecting sensitive signal lines, including those found in HDMI applications. The device is housed in a compact 10-TFSOP, 10-MSOP (0.118", 3.00mm Width) package, suitable for surface mount integration onto printed circuit boards. Operating across a temperature range of -55°C to 125°C (TJ), the ESDR0544MDMR4G provides essential power line protection with its steering (rail-to-rail) topology. This component is supplied in Tape & Reel (TR) packaging for efficient automated assembly.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | HDMI |
| Capacitance @ Frequency | 0.7pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | 10-Micro |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | - |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
