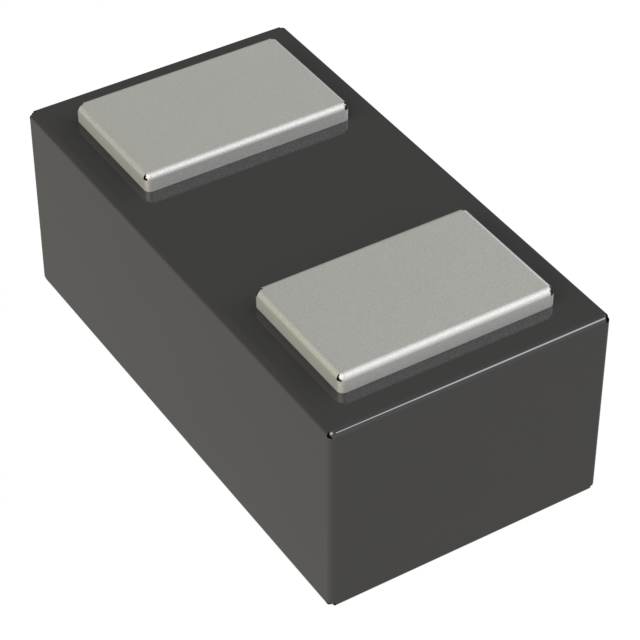

ESDM1053FCT5G
SINGLE LINE BIDIRECTIONAL 5.5V MManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi ESDM1053FCT5G is a single-line bidirectional TVS diode designed for robust transient voltage suppression. Featuring a low clamping voltage of 8.5V at a peak pulse current of 5A (10/1000µs), this device offers excellent protection for sensitive circuitry. Its reverse standoff voltage is rated at 5.5V, making it suitable for a wide range of applications. The ESDM1053FCT5G boasts a low capacitance of 5.5pF at 1MHz, minimizing signal integrity impact. Packaged in a compact 2-DSN (0.44x0.23) footprint, equivalent to the 01005 (0402 Metric) standard, it is ideal for space-constrained designs. Operating across a temperature range of -55°C to 125°C, this component is commonly employed in general-purpose protection schemes across various electronic industries. It is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 01005 (0402 Metric) |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 5.5pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 5A |
| Voltage - Reverse Standoff (Typ) | 5.5V (Max) |
| Supplier Device Package | 2-DSN (0.44x0.23) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 5.8V |
| Voltage - Clamping (Max) @ Ipp | 8.5V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Grade | - |
| Qualification | - |
