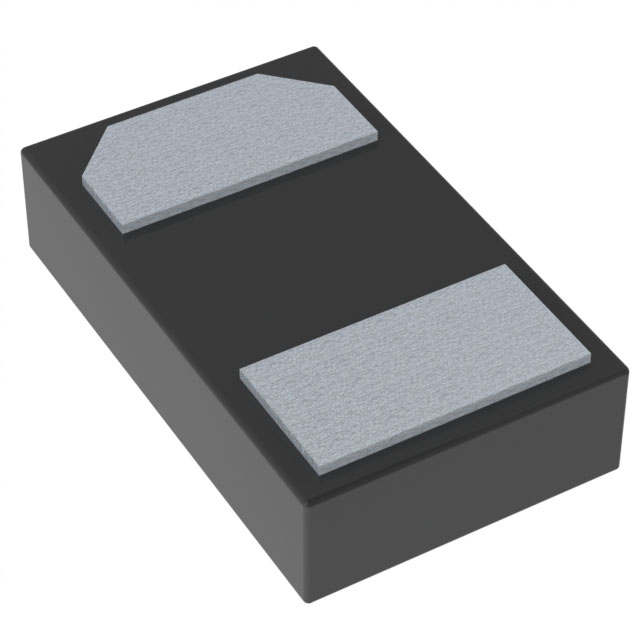

ESDL4151MX4T5G
TVS DIODE 15VWM 26VC 2X3DFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
onsemi ESDL4151MX4T5G is a transient voltage suppressor (TVS) diode designed for robust protection in demanding applications. This bidirectional device offers a low capacitance of 0.8pF at 1MHz, making it ideal for high-speed data lines such as USB 2.0 and USB 3.0. It features a 15V reverse standoff voltage and a 26V maximum clamping voltage at 47.5A (8/20µs) peak pulse current. The ESDL4151MX4T5G is housed in a compact 2x3 DFN (1x0.6) surface mount package (0402 Metric), facilitating high-density board designs. Operating across a temperature range of -55°C to 150°C (TJ), this component ensures reliable performance in industrial and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 0402 (1006 Metric) |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | USB 2.0, USB 3.0 |
| Capacitance @ Frequency | 0.8pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 47.5A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 15V (Max) |
| Supplier Device Package | 2-X3DFN (1x0.6) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 15.5V |
| Voltage - Clamping (Max) @ Ipp | 26V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
