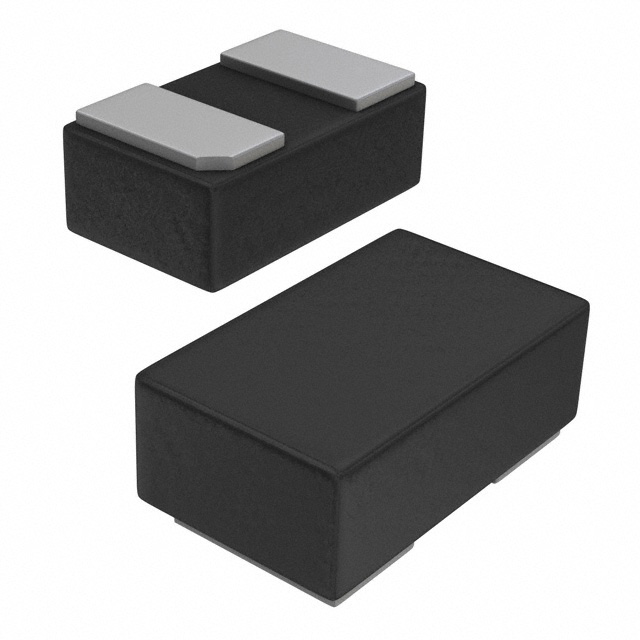

ESDL1531MX4T5G
TVS DIODE 3.3VWM 6.5VC 2X4DFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi ESDL1531MX4T5G is a transient voltage suppressor (TVS) diode designed for robust protection in demanding applications. This bidirectional device features a 3.3V reverse standoff voltage and a 5.5V minimum breakdown voltage. It offers a maximum clamping voltage of 6.5V at a peak pulse current of 5.7A (8/20µs), with a low peak pulse power rating. The diode exhibits a typical capacitance of 0.15pF at 1MHz, minimizing signal integrity impact. Packaged in a compact 2-X4DFN (0.45x0.24) footprint, suitable for surface mounting, this component operates across a wide temperature range of -55°C to 150°C. The ESDL1531MX4T5G is commonly utilized in general-purpose protection circuits across various industries.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 01005 (0402 Metric) |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.15pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 5.7A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 3.3V |
| Supplier Device Package | 2-X4DFN (0.45x0.24) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 5.5V |
| Voltage - Clamping (Max) @ Ipp | 6.5V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
