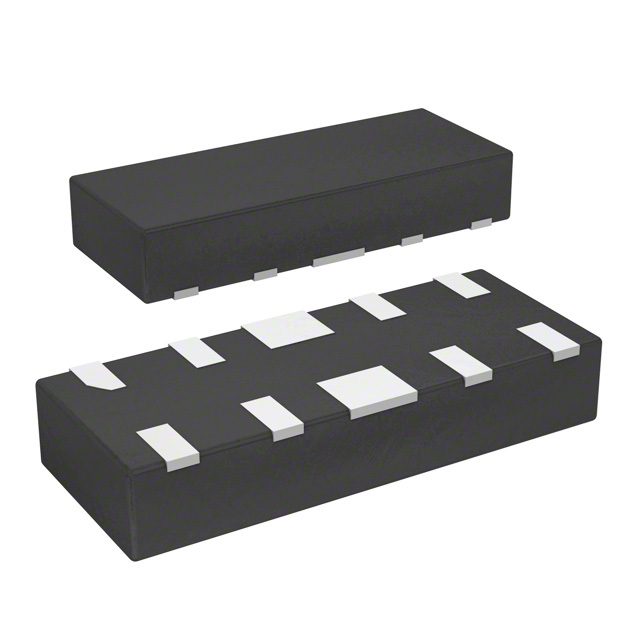

ESD8504GMUTAG
TVS DIODE 3VWM 7VC 10UDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
onsemi ESD8504GMUTAG is a transient voltage suppressor (TVS) diode designed for robust circuit protection. This 4-channel device features a 3V reverse standoff voltage and a 7V clamping voltage at 16A (10/1000µs) peak pulse current. Its low 0.39pF capacitance at 1MHz makes it suitable for high-speed data lines. The ESD8504GMUTAG is supplied in a compact 10-UDFN (2.5x1) surface mount package, ideal for space-constrained designs. Operating across a temperature range of -55°C to 125°C, it finds application in general-purpose protection across various electronic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.39pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 16A (100ns) |
| Voltage - Reverse Standoff (Typ) | 3V (Max) |
| Supplier Device Package | 10-UDFN (2.5x1) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 4V |
| Voltage - Clamping (Max) @ Ipp | 7V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
