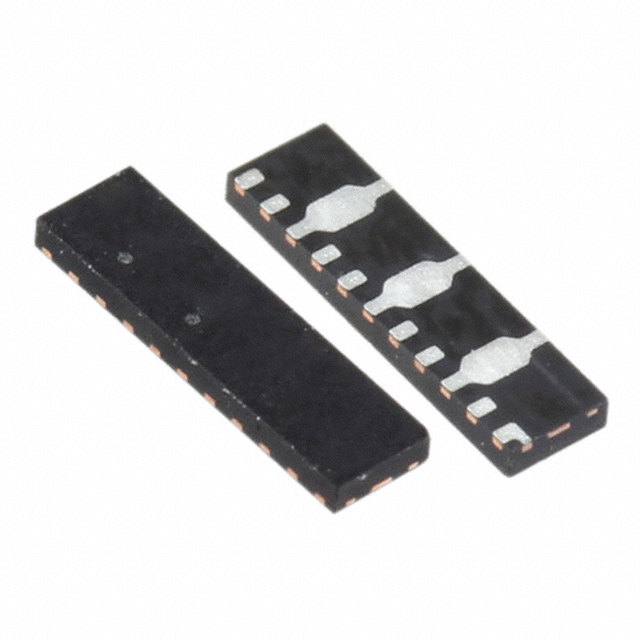

ESD8106MUTAG
TVS DIODE 3.3VWM 11.4VC 14UDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi ESD8106MUTAG is a Transient Voltage Suppressor (TVS) diode designed for robust overvoltage protection. This device offers a 3.3V reverse standoff voltage and a 4V minimum breakdown voltage, effectively safeguarding sensitive circuitry. With a typical clamping voltage of 11.4V at a peak pulse current (Ipp) of 16A (100ns pulse), it provides excellent protection against voltage transients. The ESD8106MUTAG features 6 unidirectional channels and a low capacitance of 0.3pF at 1MHz, making it suitable for high-speed data lines. Packaged in a compact 14-UFDFN (3.5x1.35) format for surface mount applications, this component operates across a wide temperature range of -55°C to 125°C (TJ). Its performance characteristics make it ideal for applications requiring effective electrostatic discharge (ESD) protection in general-purpose electronics, automotive systems, and consumer devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 14-UFDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 0.3pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 16A (100ns) |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | 14-UDFN (3.5x1.35) |
| Unidirectional Channels | 6 |
| Voltage - Breakdown (Min) | 4V |
| Voltage - Clamping (Max) @ Ipp | 11.4V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
