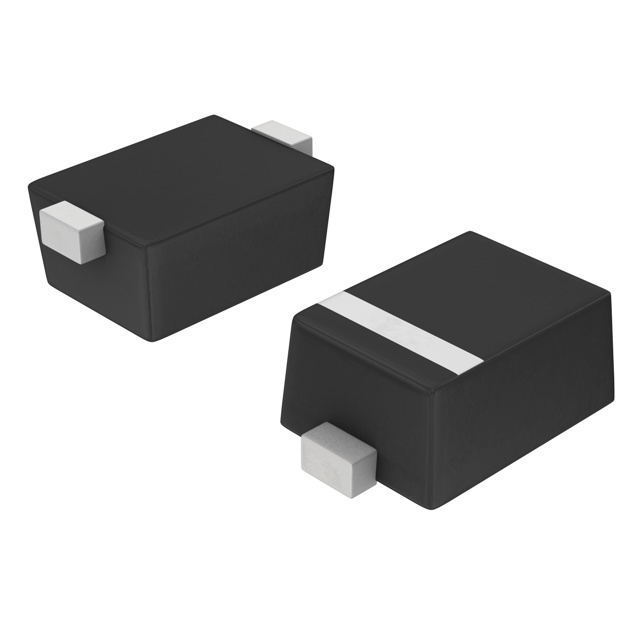

ESD7951ST5G
TVS DIODE 5VWM 12.9VC SOD923Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi ESD7951ST5G is a transient voltage suppressor (TVS) diode designed for robust circuit protection. This bidirectional device offers a 5V reverse standoff voltage and a 5.4V breakdown voltage. It features a low 12.9V clamping voltage at a peak pulse current of 1A (8/20µs), with a typical capacitance of 0.5pF at 1MHz. Packaged in a compact SOD-923 surface-mount configuration and supplied on tape and reel, the ESD7951ST5G is suitable for applications requiring high-speed signal line protection, such as USB interfaces. It operates across a temperature range of -55°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOD-923 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | USB |
| Capacitance @ Frequency | 0.5pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | SOD-923 |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 5.4V |
| Voltage - Clamping (Max) @ Ipp | 12.9V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
