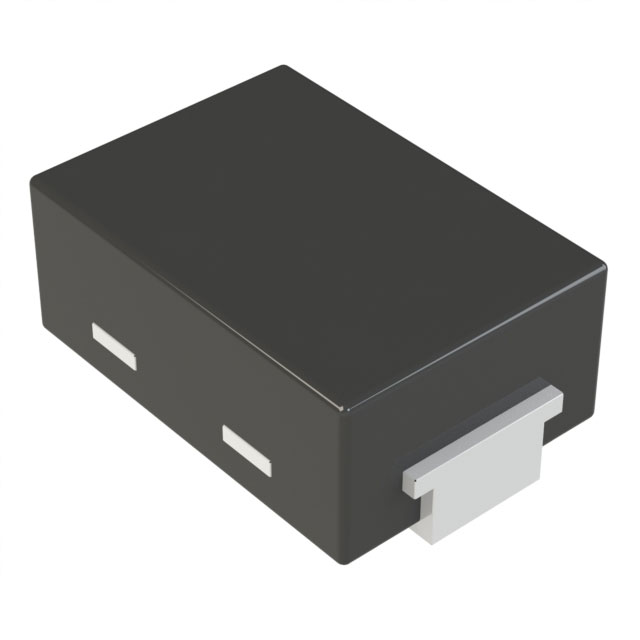

ESD7410MXWT5G
10V VRWM ESD PROTECTIONManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi ESD7410MXWT5G is a TVS diode designed for robust ESD protection. This bidirectional device features a 10V reverse standoff voltage and a 19.4V maximum clamping voltage at a peak pulse current of 5A (8/20µs). Its low capacitance of 0.35pF at 1GHz makes it suitable for high-frequency applications, including RF antenna protection. The component is housed in a compact 2-X2DFNW (1x0.6) surface mount package with wettable flanks, facilitating automated assembly. Operating across a wide temperature range of -55°C to 150°C, this onsemi TVS diode is engineered for reliability in demanding environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XDFN |
| Mounting Type | Surface Mount, Wettable Flank |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | RF Antenna |
| Capacitance @ Frequency | 0.35pF @ 1GHz |
| Current - Peak Pulse (10/1000µs) | 5A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 8V (Max) |
| Supplier Device Package | 2-X2DFNW (1x0.6) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 10V |
| Voltage - Clamping (Max) @ Ipp | 19.4V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
