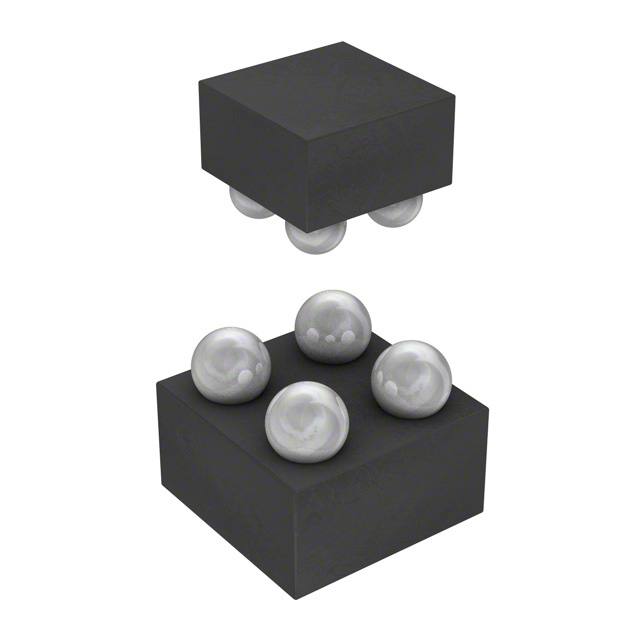

The onsemi ASIP™ ESD6116 is a unidirectional transient voltage suppressor (TVS) diode designed for robust overvoltage protection. This 4-WLCSP (0.8x0.8) package component offers a low clamping voltage of 20V at a peak pulse current of 1A (8/20µs). With a breakdown voltage of 16V (minimum), the ESD6116 provides effective protection against electrostatic discharge and other transient overvoltages. Its surface mount configuration and compact package make it suitable for space-constrained applications. Operating within a temperature range of -30°C to 85°C, this TVS diode is commonly utilized in general-purpose applications across various industries requiring sensitive electronic component protection. The device is supplied on tape and reel.
Additional Information
Series: ASIP™RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -30°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | - |
| Supplier Device Package | 4-WLCSP (0.8x0.8) |
| Unidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 16V |
| Voltage - Clamping (Max) @ Ipp | 20V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
