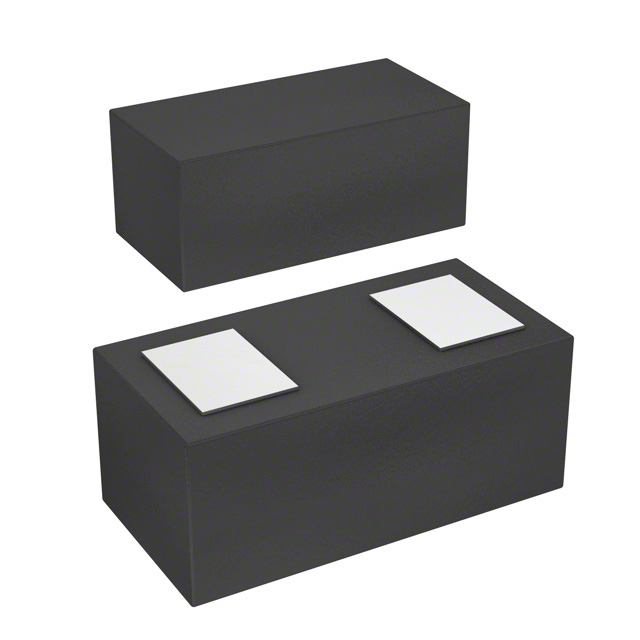

ESD5484FCT5G
TVS DIODE 5VWM 11.5VC 2WLCSPManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi ESD5484FCT5G is a transient voltage suppression diode designed for robust protection in demanding applications. Featuring a 5V reverse standoff voltage and a 6V minimum breakdown voltage, this device offers effective clamping at 11.5V with a peak pulse current capability of 7A (8/20µs). Its 2-WLCSP (0.6x0.3) package and surface mount capability make it suitable for compact designs. Operating across a wide temperature range of -55°C to 150°C, the ESD5484FCT5G is utilized in general-purpose protection schemes, often found in consumer electronics and industrial equipment. The component is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 7A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Supplier Device Package | 2-WLCSP (0.6x0.3) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 11.5V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
