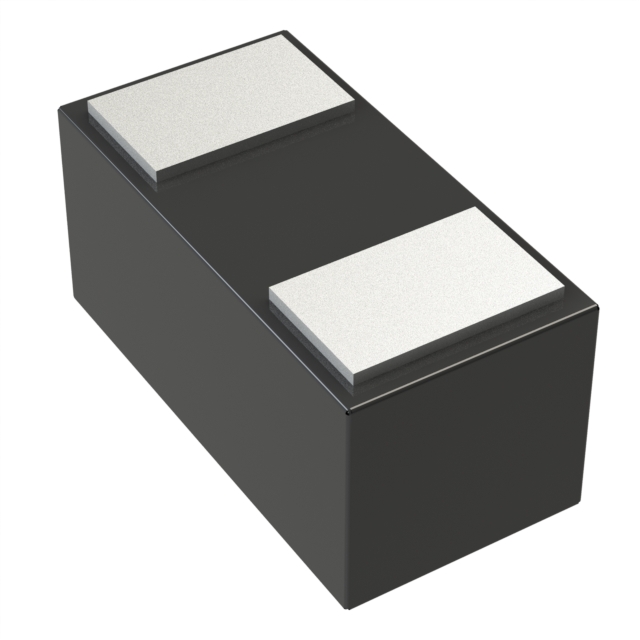

ESD5111FCT5G
TVS DIODE 3.3VWM 6.5VC 2WLCSPManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi ESD5111FCT5G is a bidirectional Transient Voltage Suppressor (TVS) diode designed for robust overvoltage protection. Featuring a 3.3V reverse standoff voltage and a 6.5V maximum clamping voltage at 16A (100ns Ipp), this component offers significant surge handling capability. Its low capacitance of 5.5pF at 1MHz makes it suitable for high-speed data lines. The device operates across a temperature range of -55°C to 125°C and is supplied in a compact 2-WLCSP (0.6x0.3) package, ideal for surface mount applications. This TVS diode finds application in general-purpose protection schemes across various industries requiring transient suppression.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-XFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 5.5pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | 16A (100ns) |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | 2-WLCSP (0.6x0.3) |
| Bidirectional Channels | 1 |
| Voltage - Breakdown (Min) | 3.68V |
| Voltage - Clamping (Max) @ Ipp | 6.5V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
