ESD5102FCT5G
TVS DIODE 3.3VWM 6.5VC 3DSNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

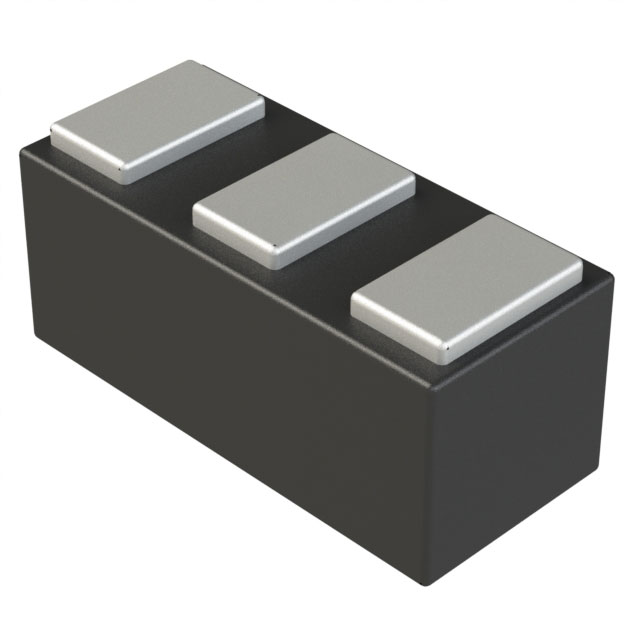

The onsemi ESD5102FCT5G is a bidirectional Transient Voltage Suppressor (TVS) diode designed for robust overvoltage protection. Featuring a 3.3V reverse standoff voltage and a 6.5V maximum clamping voltage at peak pulse current, this component offers efficient transient suppression. Its low capacitance of 5.5pF at 1MHz makes it suitable for high-speed data lines. The device is housed in a compact 3-DSN (0.73x0.25) surface-mount package, facilitating dense board layouts. Operating across a wide temperature range of -55°C to 125°C, it finds application in general-purpose protection schemes across various electronic systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 3-XFDFN |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 5.5pF @ 1MHz (Max) |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | 3-DSN (0.73x0.25) |
| Bidirectional Channels | 2 |
| Voltage - Breakdown (Min) | 3.68V |
| Voltage - Clamping (Max) @ Ipp | 6.5V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
