ESD5004MXTBG

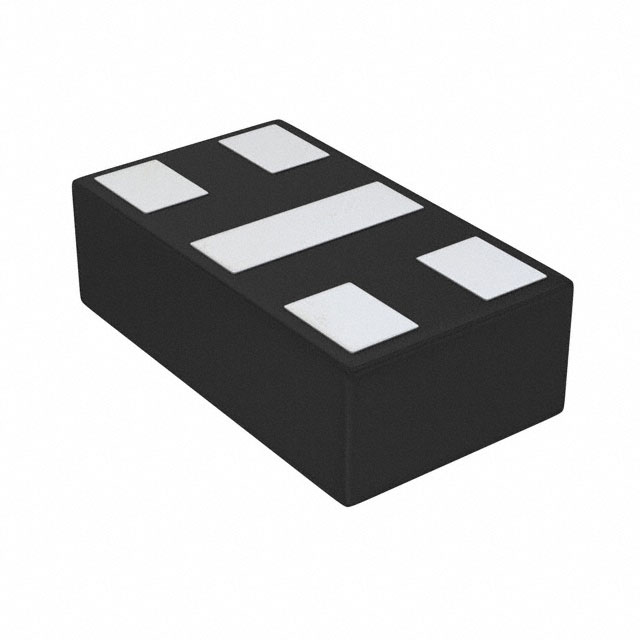

TVS DIODE 3.3VWM 9.1VC 4X3DFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More
The onsemi ESD5004MXTBG is a transient voltage suppressor (TVS) diode designed for robust overvoltage protection. This component features a 3.3V reverse standoff voltage and a maximum clamping voltage of 9.1V at 10/1000µs pulse current. With a low capacitance of 3.5pF at 1MHz, it minimizes signal integrity impact in high-speed applications. The device offers bidirectional protection across four channels and operates within an extended temperature range of -55°C to 125°C. Its compact 4-X3DFN (0.53x0.93) package with an exposed pad, supplied in tape and reel, is ideal for surface mount integration. Applications for this TVS diode include general-purpose protection in consumer electronics and industrial equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-XFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | General Purpose |
| Capacitance @ Frequency | 3.5pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Supplier Device Package | 4-X3DFN (0.53x0.93) |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 3.9V |
| Voltage - Clamping (Max) @ Ipp | 9.1V |
| Power - Peak Pulse | - |
| Power Line Protection | No |
