ESD4238MTTAG
TVS DIODE 10VC 16WDFNManufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

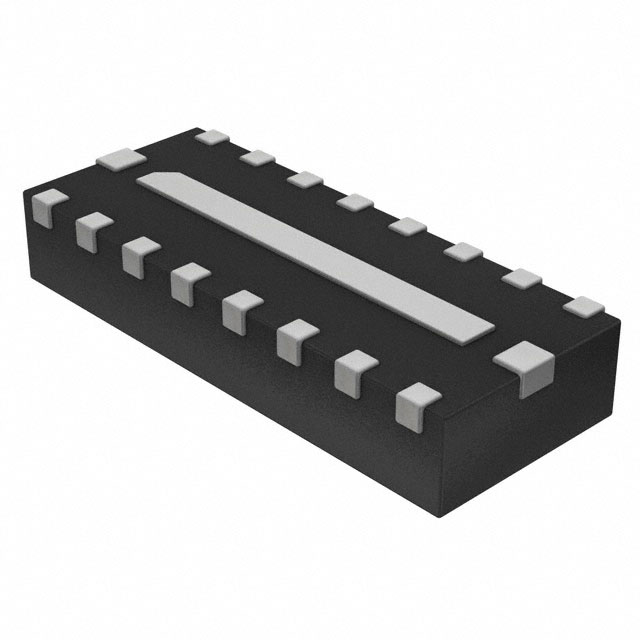

The onsemi ESD4238MTTAG is a transient voltage suppressor diode designed for robust circuit protection. This steering diode, housed in a 16-WDFN (4x1.6) package, offers a 10V clamping voltage at a peak pulse current of 1A (8/20µs). It features 8 unidirectional channels and is suitable for general-purpose applications requiring power line protection. The device operates within a temperature range of -40°C to 85°C (TA) and mounts directly to the PCB via its surface mount configuration. The ESD4238MTTAG is supplied on tape and reel (TR).
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Type | Steering (Rail to Rail) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Current - Peak Pulse (10/1000µs) | 1A (8/20µs) |
| Voltage - Reverse Standoff (Typ) | - |
| Supplier Device Package | 16-WDFN (4x1.6) |
| Unidirectional Channels | 8 |
| Voltage - Breakdown (Min) | 5V |
| Voltage - Clamping (Max) @ Ipp | 10V |
| Power - Peak Pulse | - |
| Power Line Protection | Yes |
