ESD1L001W1T2G
TVS DIODE 5VWM 30VC SC70-6Manufacturer: onsemi
Categories: TVS Diodes
Quality Control: Learn More

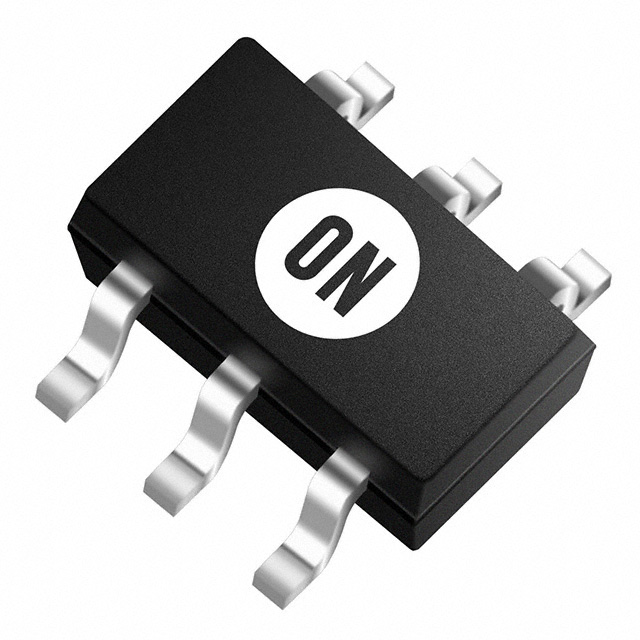

The onsemi ESD1L001W1T2G is a 4-channel Transient Voltage Suppressor (TVS) diode designed for surface mount applications. This component offers a 5V reverse standoff voltage and a typical clamping voltage of 30V at 10/1000µs. With a low capacitance of 0.3pF @ 1MHz, it is suitable for high-speed data line protection. The device is packaged in an SC-70-6 (SOT-363) and operates within a temperature range of -55°C to 125°C. It finds application in industries such as consumer electronics, particularly for protecting interfaces like HDMI and USB from electrostatic discharge events.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Type | Zener |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Applications | HDMI, USB |
| Capacitance @ Frequency | 0.3pF @ 1MHz |
| Current - Peak Pulse (10/1000µs) | - |
| Voltage - Reverse Standoff (Typ) | 5V |
| Supplier Device Package | SC-70-6 |
| Unidirectional Channels | 4 |
| Voltage - Breakdown (Min) | 16.5V |
| Voltage - Clamping (Max) @ Ipp | 30V (Typ) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
